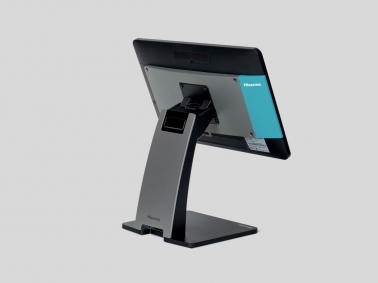

HISENSE HK560

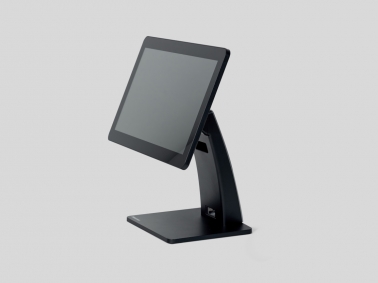

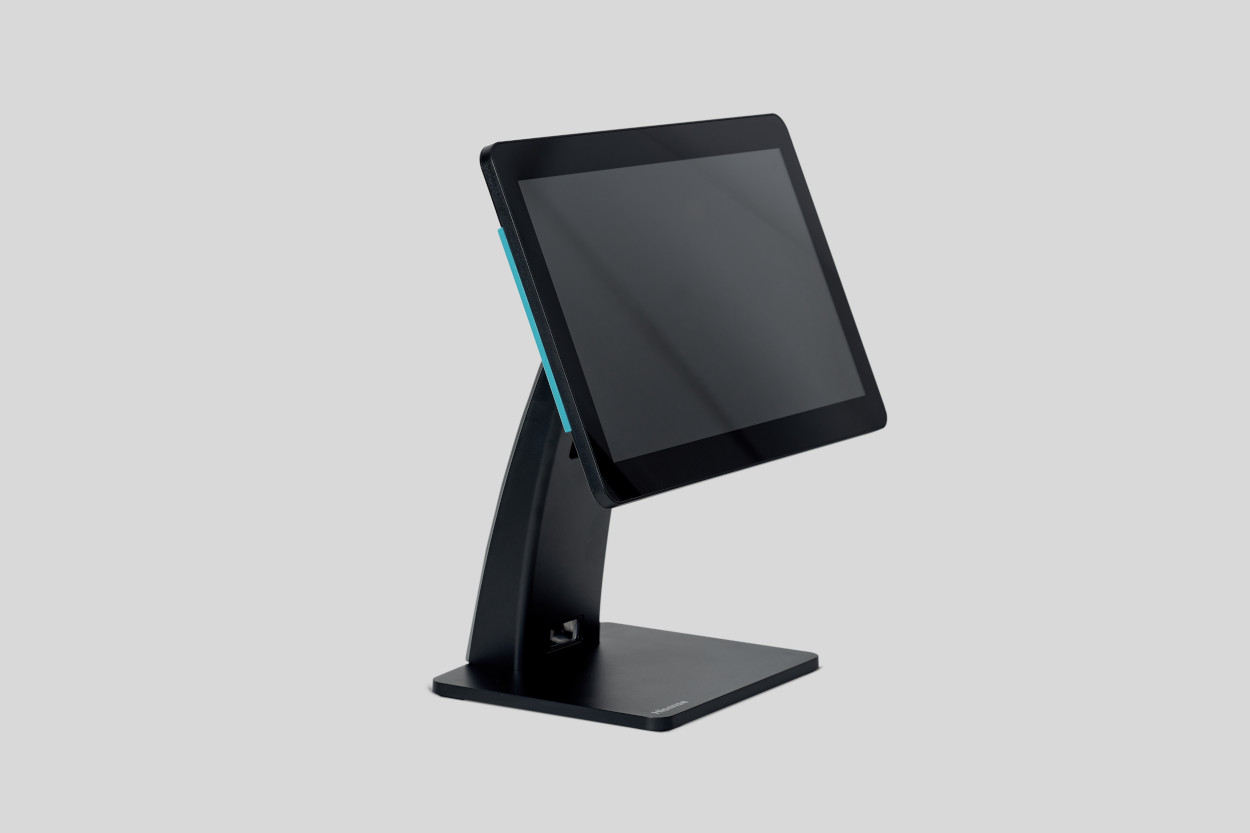

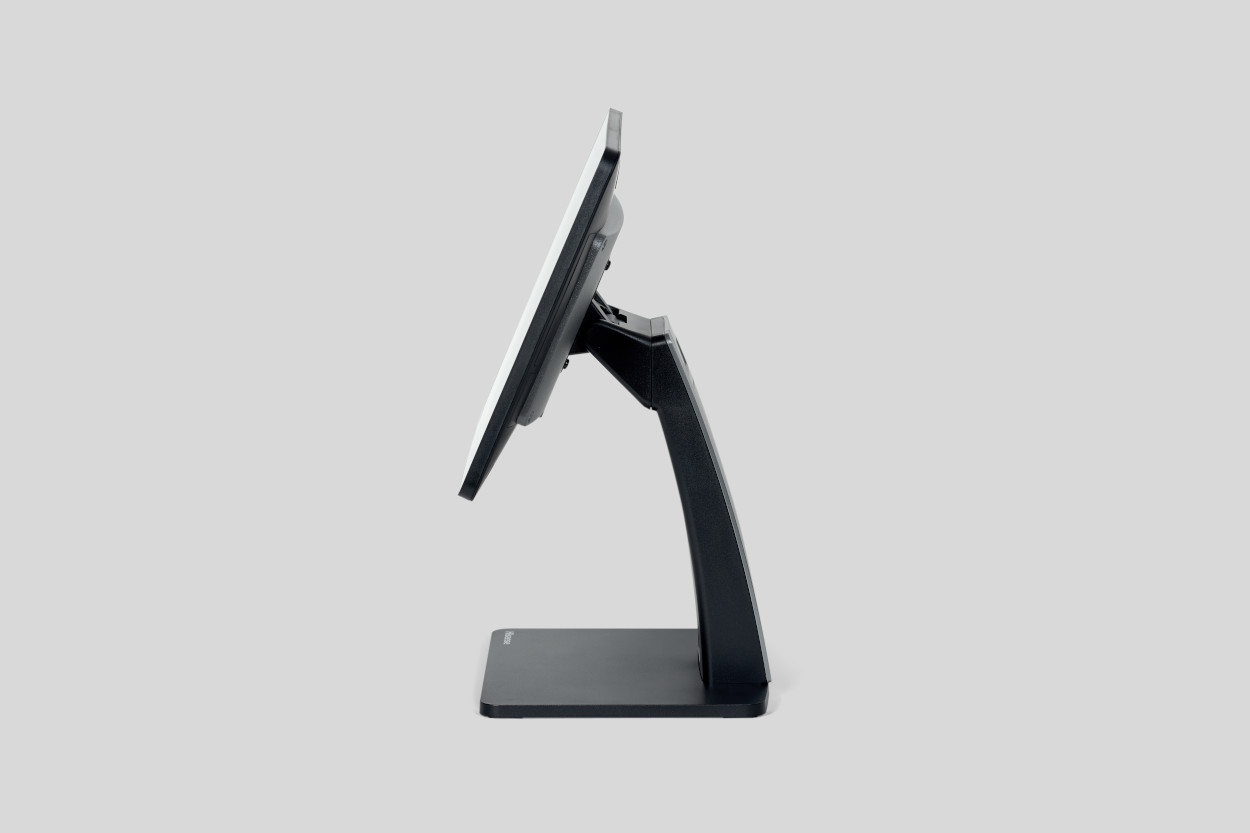

Hisense HK560 touch computer combines "light design" with reliability common to all Hisense products. The HK560 model is equipped with a passive cooling system, a widescreen capacitive touch screen and a base with an option of portrait and landscape screen orientation.
The popular computing platform based on Intel Celeron J1900 processor guarantees the compatibility of the computer with all popular sales systems available on the Polish market.

Colour option
HISENSE HK560

Modern design

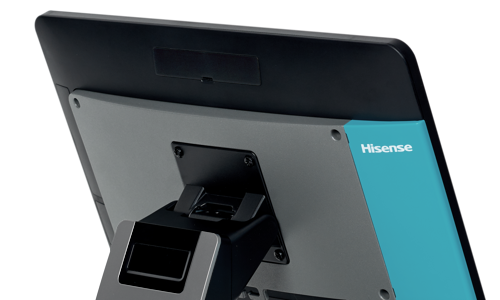

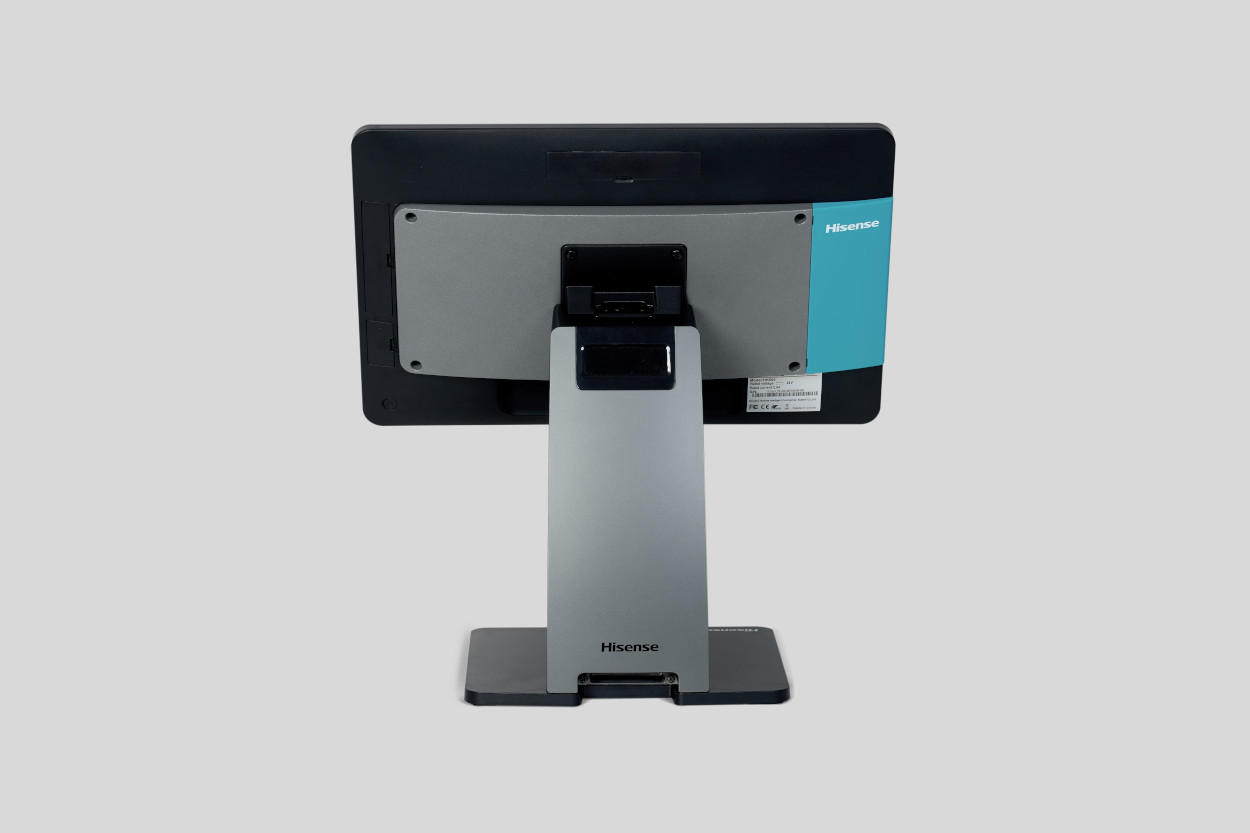

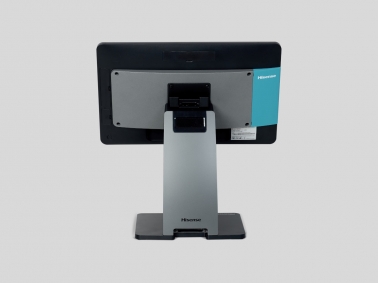

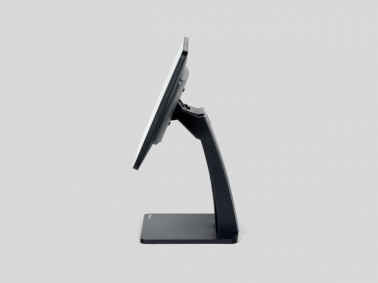

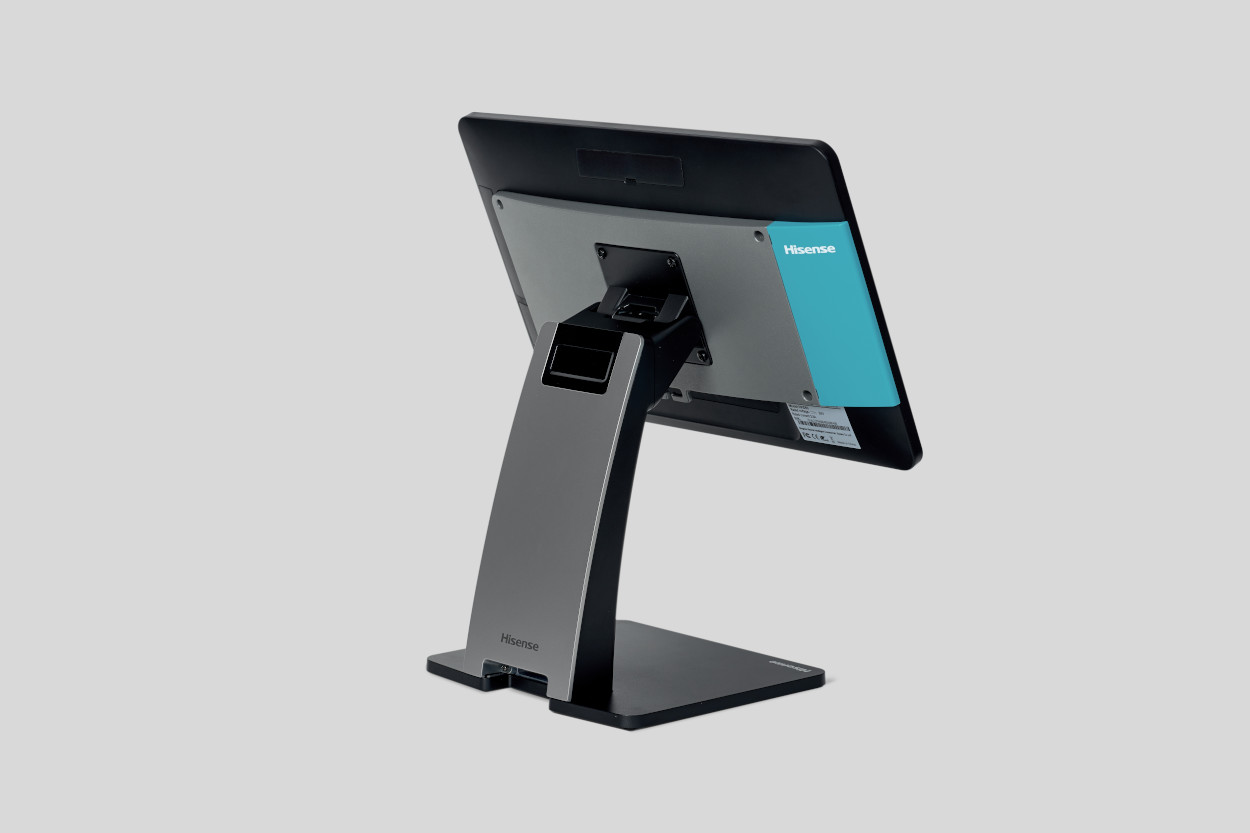

The housing of the HK560 model has been designed for use in points of sale, where the design of the environment plays a key role. The terminal base allows the wiring to be completely hidden in the inner tunnel. The rear display panel and the base platform cover are made of thick-walled ABS material. The aluminum heat sink and vertical base cover visible on the back of the display are covered with high-quality paint coats of consistent color. The color range of the housing corresponds to the current stylistic trends used in consumer electronics.

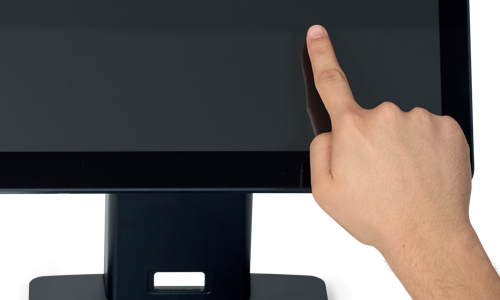

Capacitive touch screen

The capacitive screen made of laminated glass is responsible for the implementation of the touch functions, which means that it will not wear out easily.
The operator of the terminal may wear latex or foil gloves - also double ones. The screen and other housing elements are effectively protected against flooding and dust.

Passive cooling system

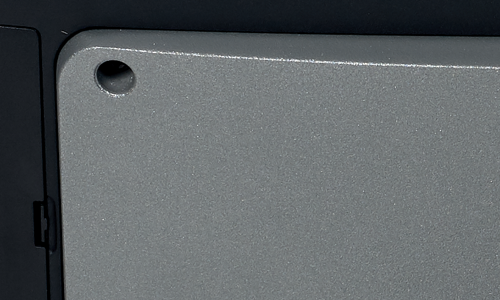

The heat produced by CPU is dissipatted by the fanless cooling system, the key element of which is an large-area aluminum heat sink. The exposed heat sink body effectively dissipates heat to the environment, ensuring stable operation in the typical conditions of every point of sale.

High resolution

The terminal's LCD panel operates at the 1080p standard and therefore natively supports 1920 x 1080 resolution.
High image resolution enables the display of high-quality images, which is important in advertising and self-service applications.

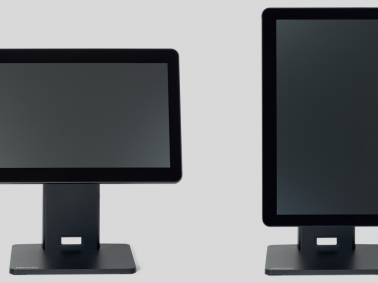

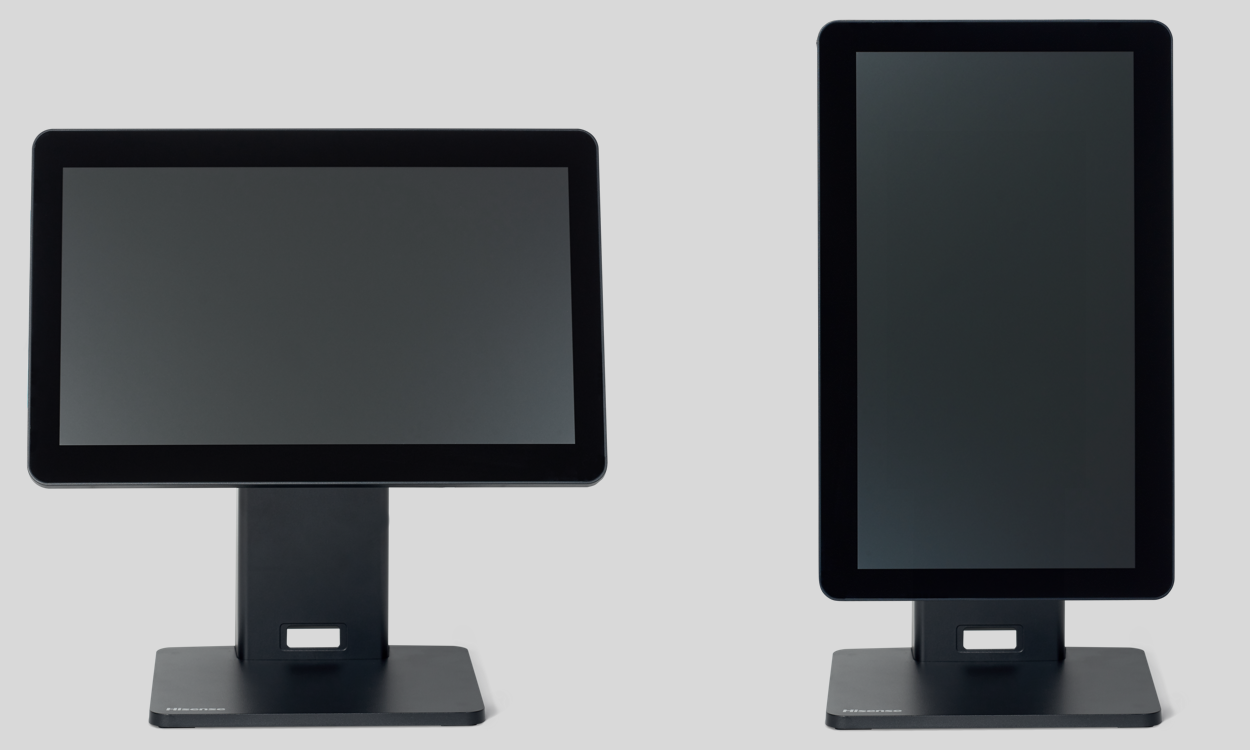

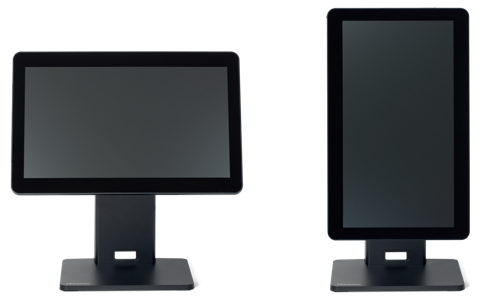

Two operating positions of the schreen

By slightly increasing the height of the base, the terminal has the ability to work with the screen in a portrait position. This functionality is most often used in self-service checkouts.
When using this solution, you should take into account the asymmetrical angle of correct image display (the quality of the image visible on a screen installed vertically will change with the viewing angle).

Recommended devices
Device type
Touchscreen monitor
Model
Hisense HK560
Colours
Black
Touch technologies
Projected Capacitive
Diagonal size
15,6
Aspect ratio
16:9
Resolution
1920 x 1080
Brightness (sole LCD panel)
250 cd/m2
Brightness (Pro. Cap)
220 cd/m2
Power consumption (typical)
24W
Power supply - type
External
Power supply - voltage
100-240V
Estimated durability of sub-units - longevity of matrix illumination
50 000 hours (demonstrated)
OSD - buttons
Power
Assembly options - Assembly without the base
VESA 75mm
Warranty
36 months
Multimedia functions
Line-out
Sealability
Active area resistant to flooding above IP65 class, the chassis is resistant to vertical flooding, passive system prevents environmental dust into the computer
Calculation platform
Processor
Low energy
Processor data
Intel Bay Trail Quad Core Celeron J1900 2.0 GHz
RAM
4GB DDR3L SODIMM, Max. 8GB (in 1 slot)

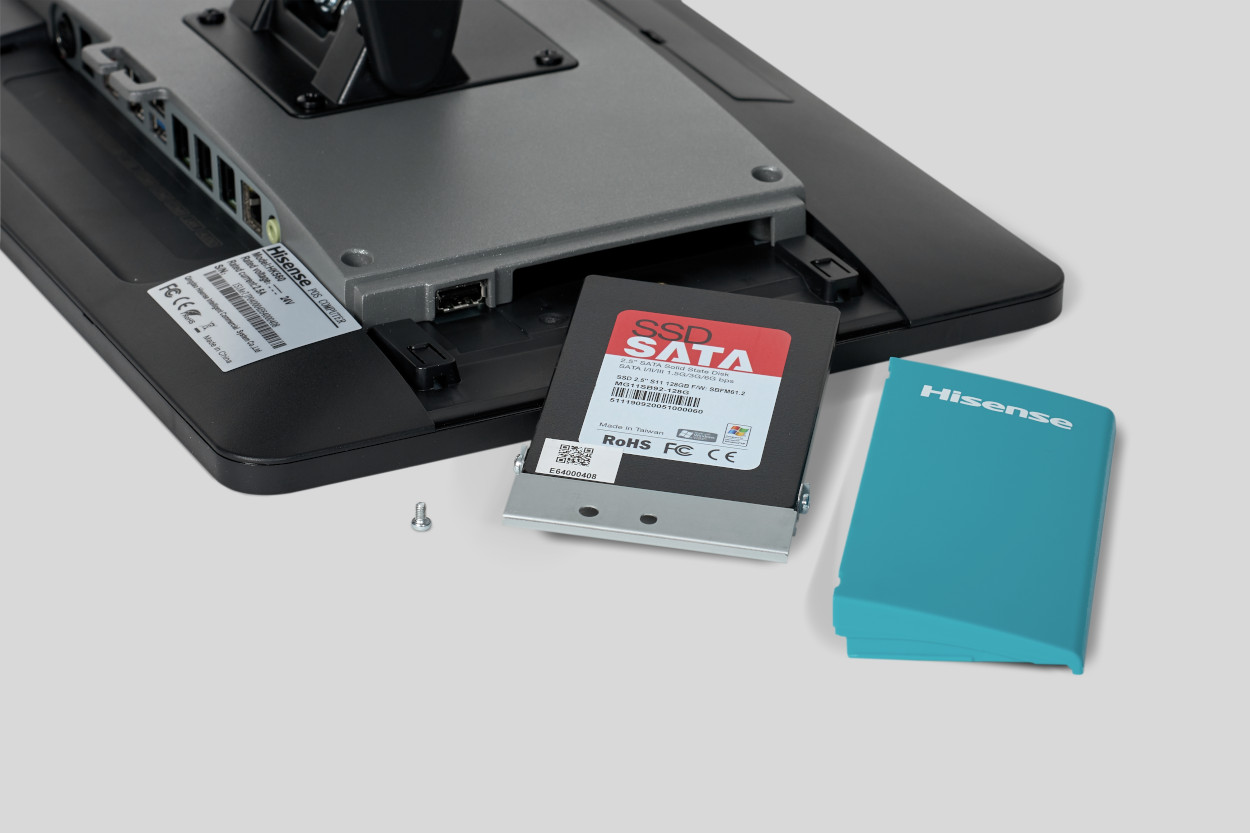

Storage

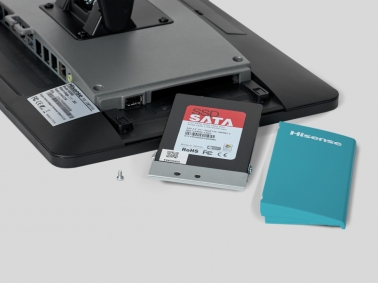

SSD 128GB SATA 2,5"
Cooling system
Passive

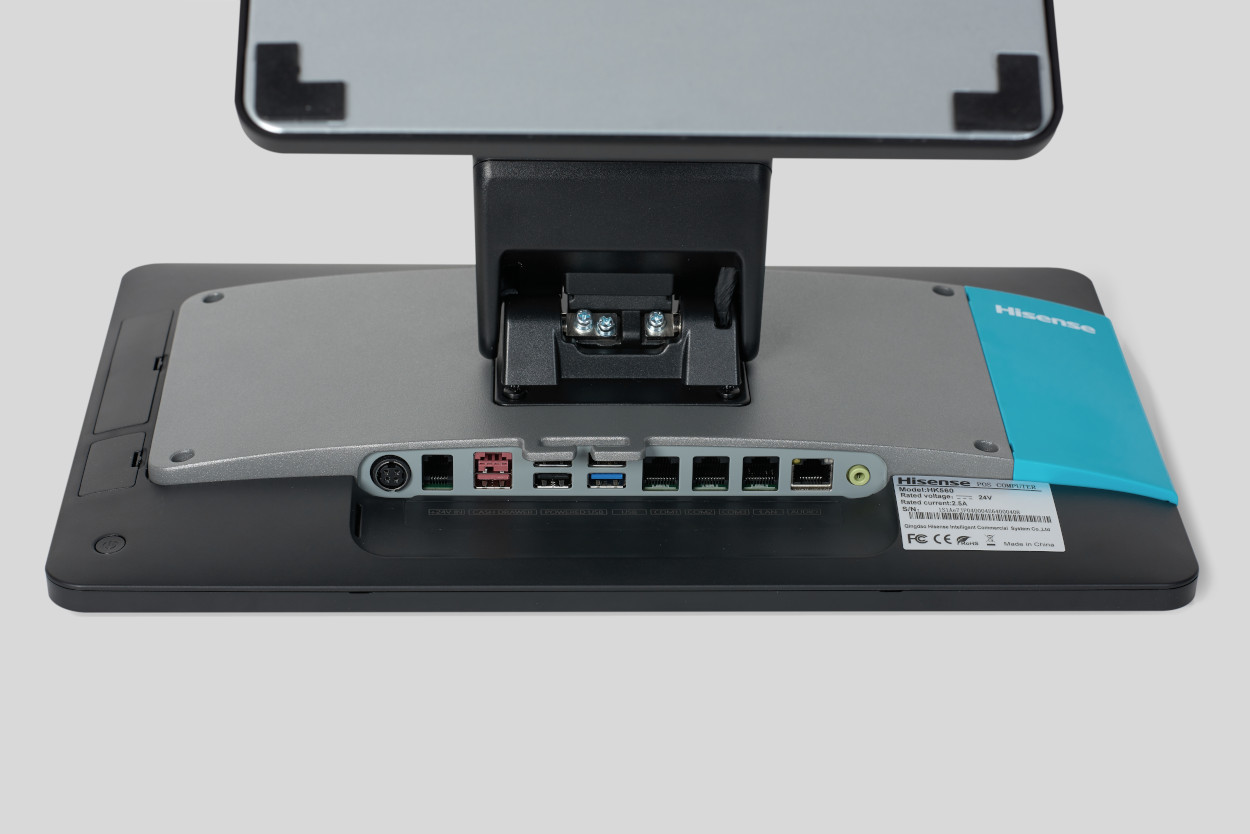

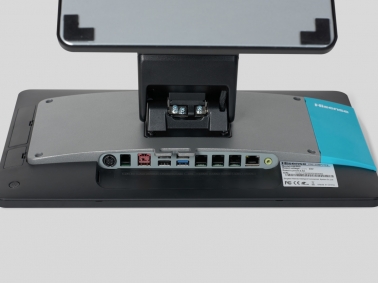

Communication interfaces
USB ports
  • 4 x USB 2.0
  • 1 x USB 3.0 (on the back of the display )
  • 1 x USB 24V (USB 2.0 compatible)
RS232 ports
3 x RS232
Video output
Custom interface for connecting a dedicated additional display
Audio
1 x Audio jack 3.5mm
Other interfaces
1 x Ethernet (10/100/1000), 1 x RJ11 - cash drawer
Operating system
Available systems (preinstalled)
  • Windows 10 IoT
  • No OS
