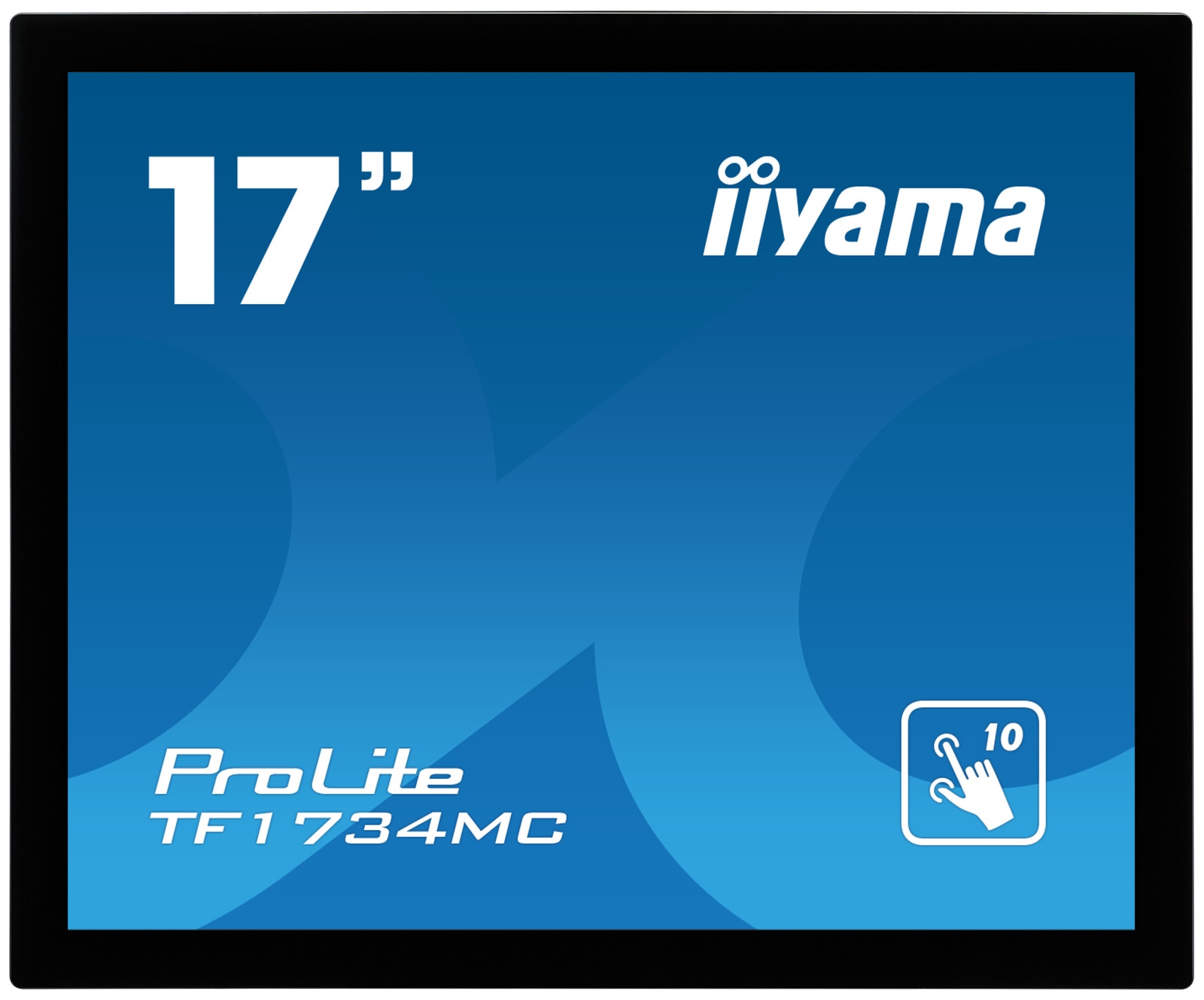

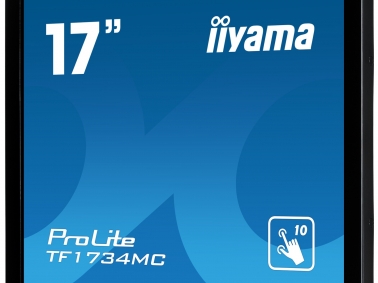

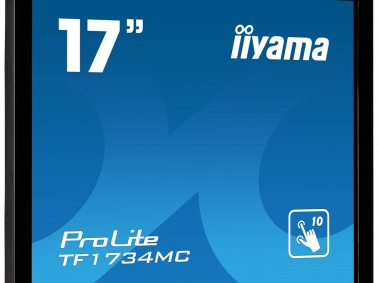

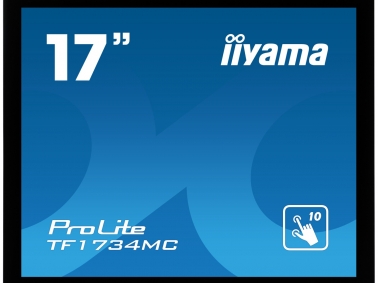

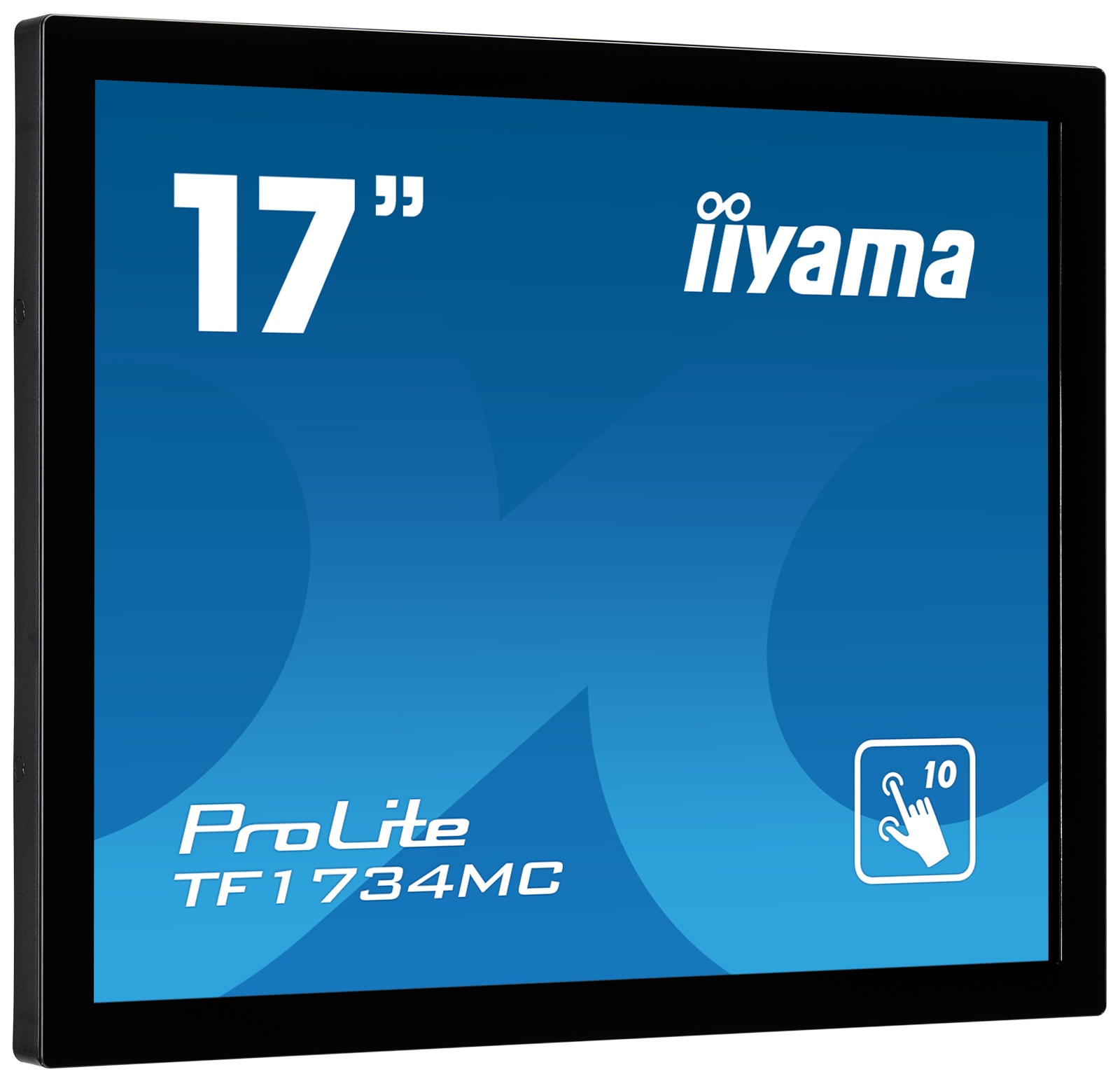

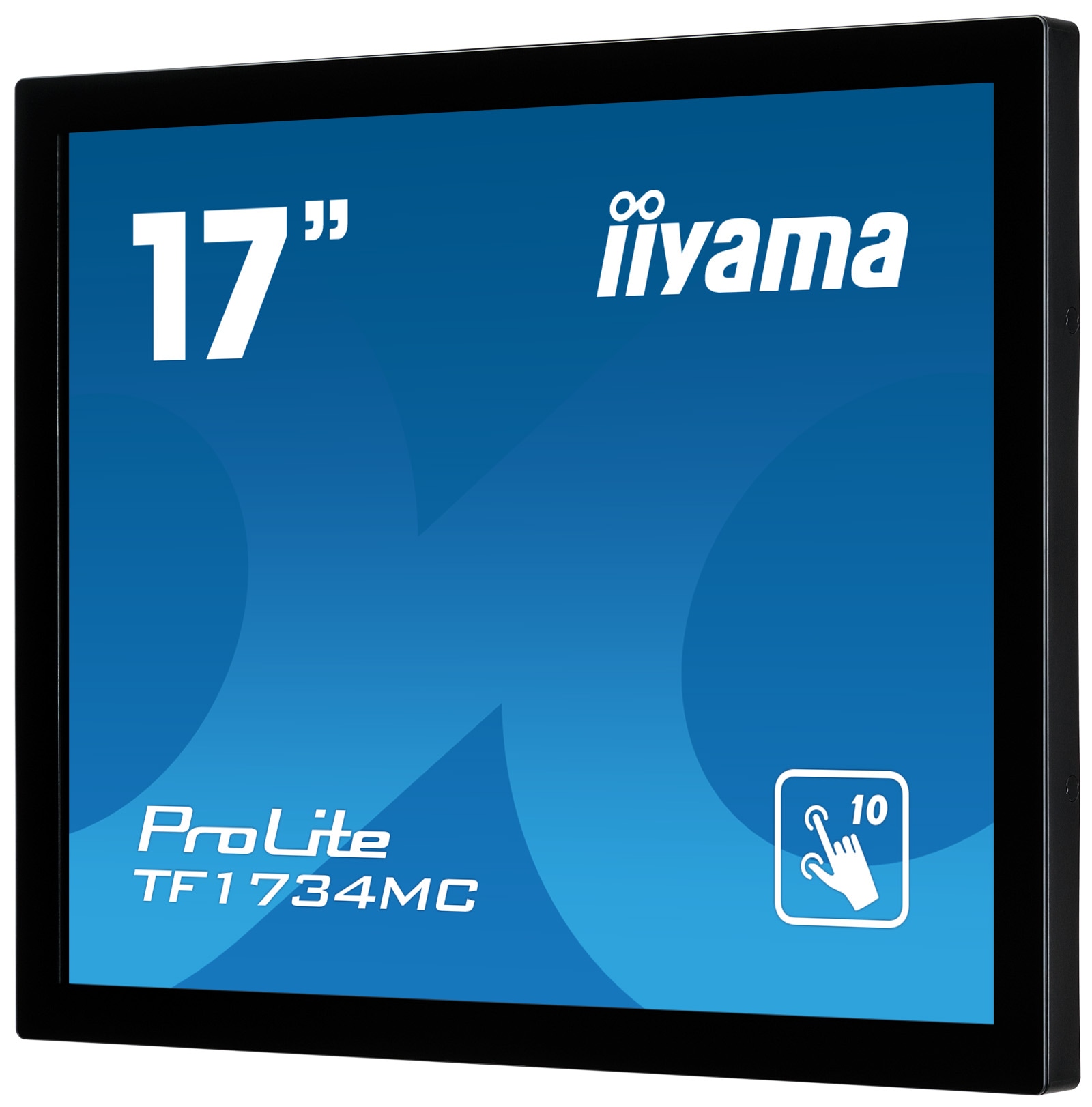

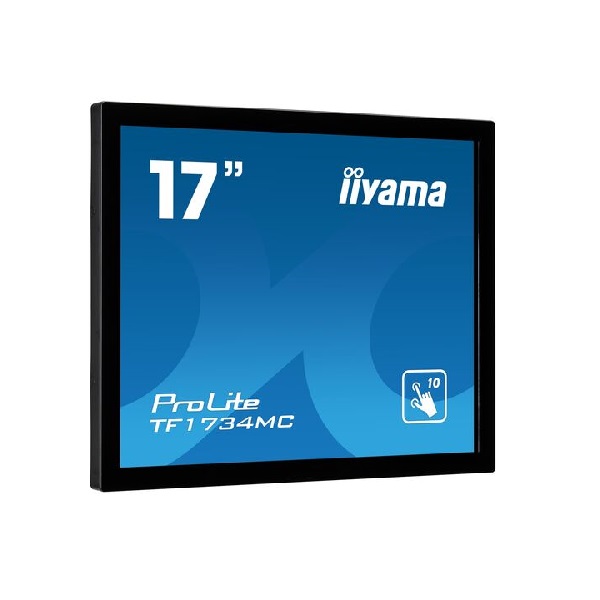

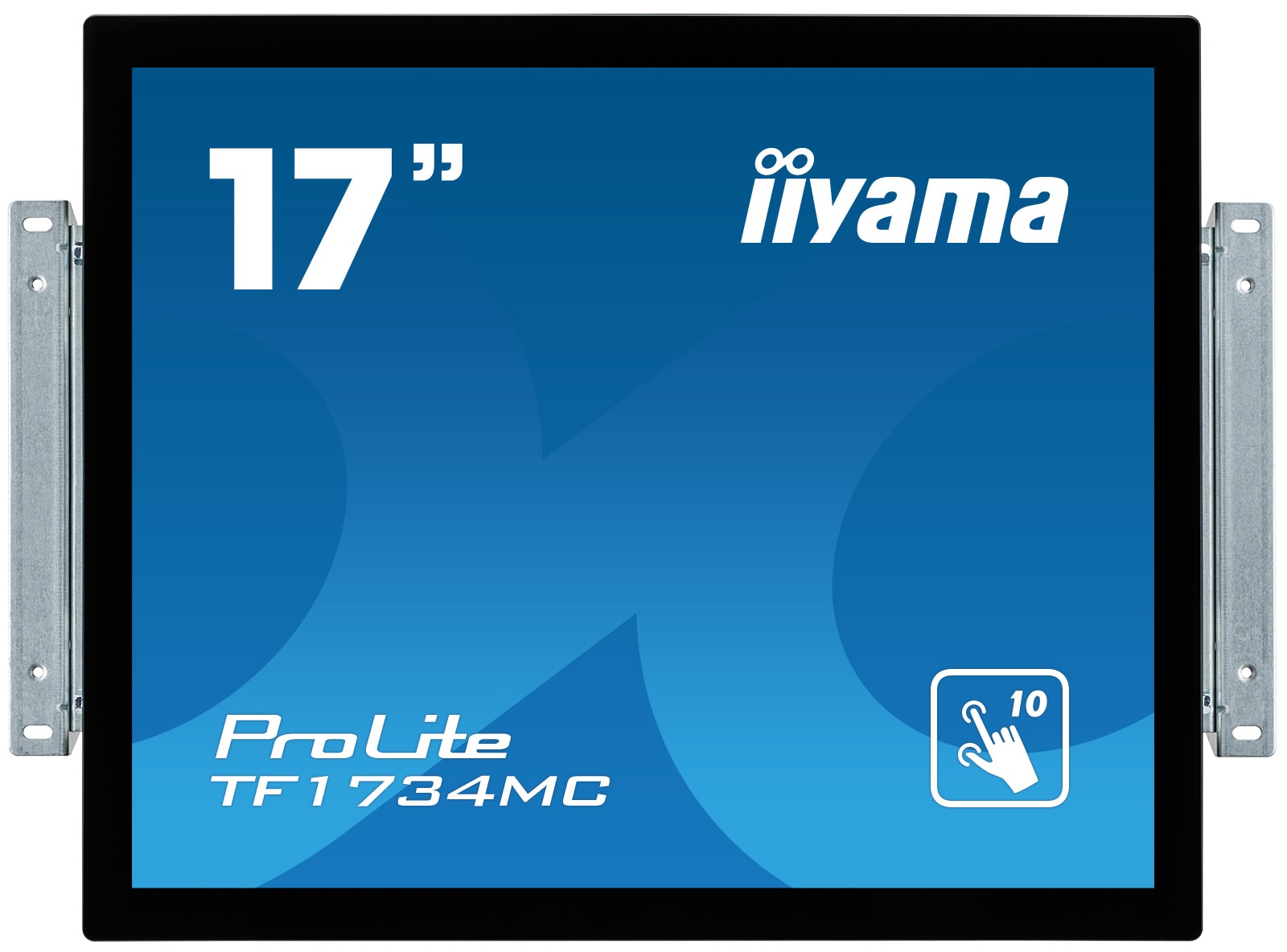

iiyama ProLite TF1734MC-B6X

17’’ open frame 10pt touch monitor

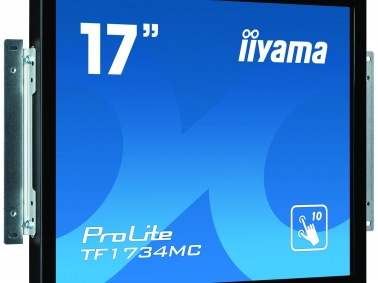

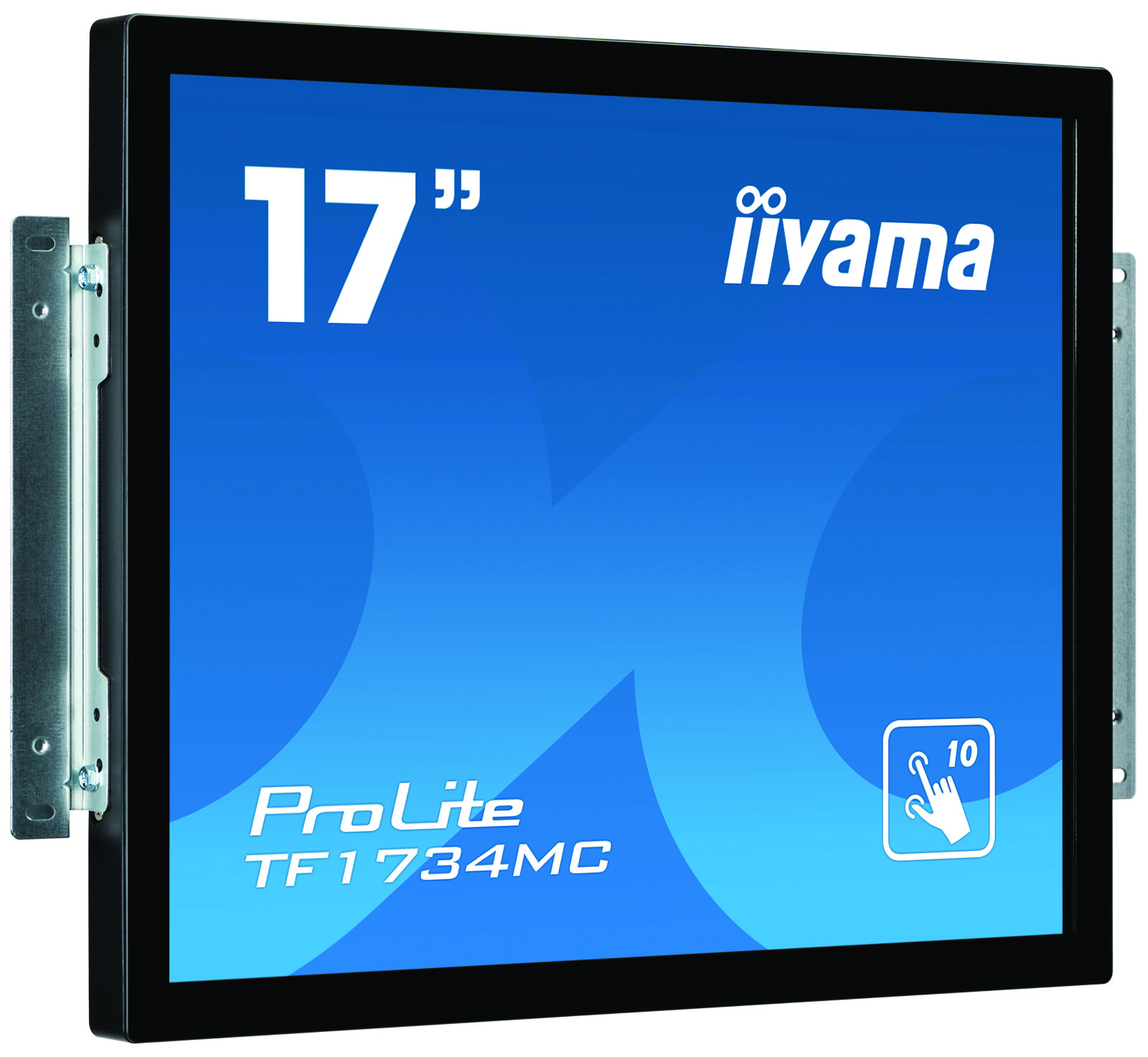

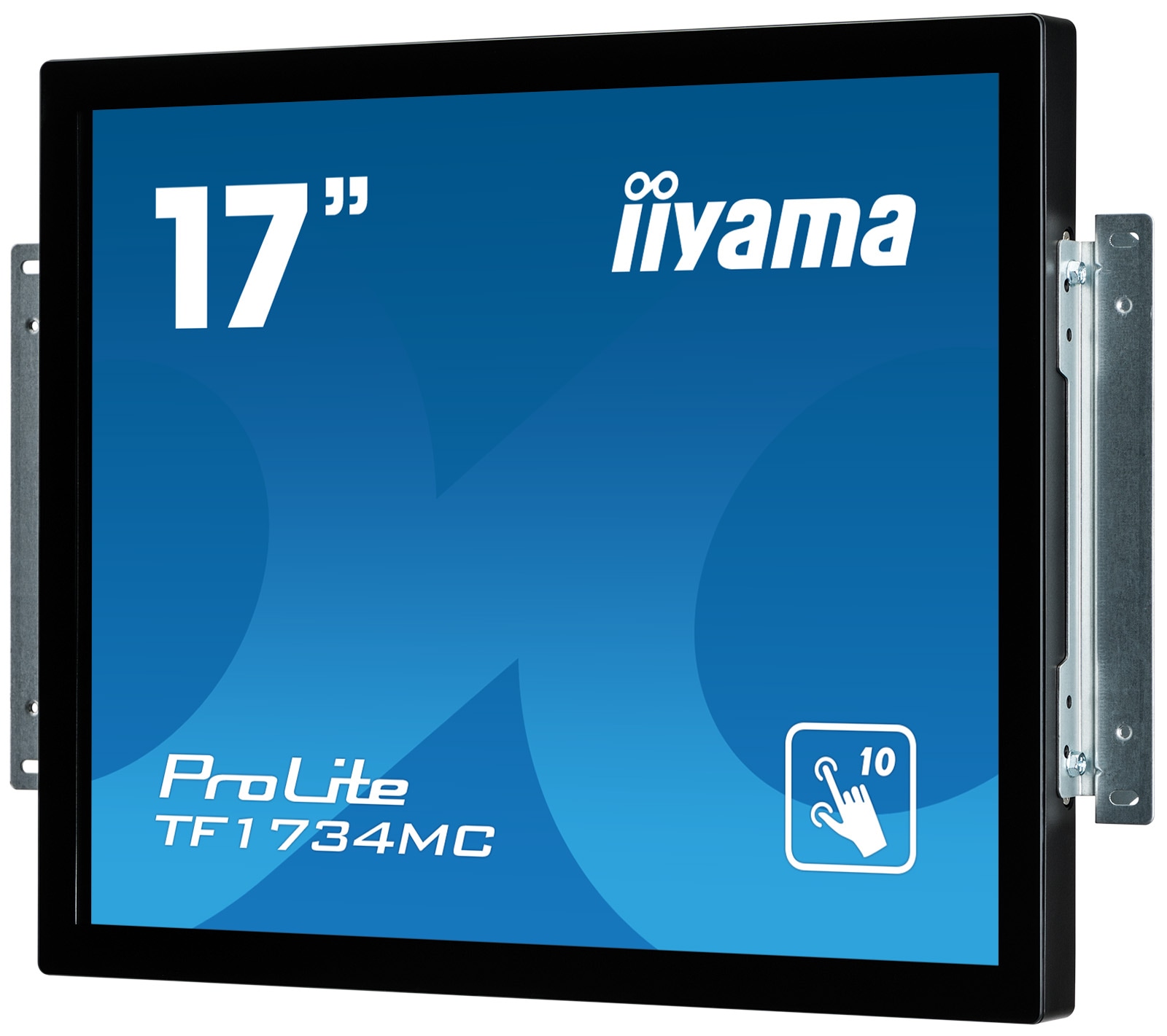

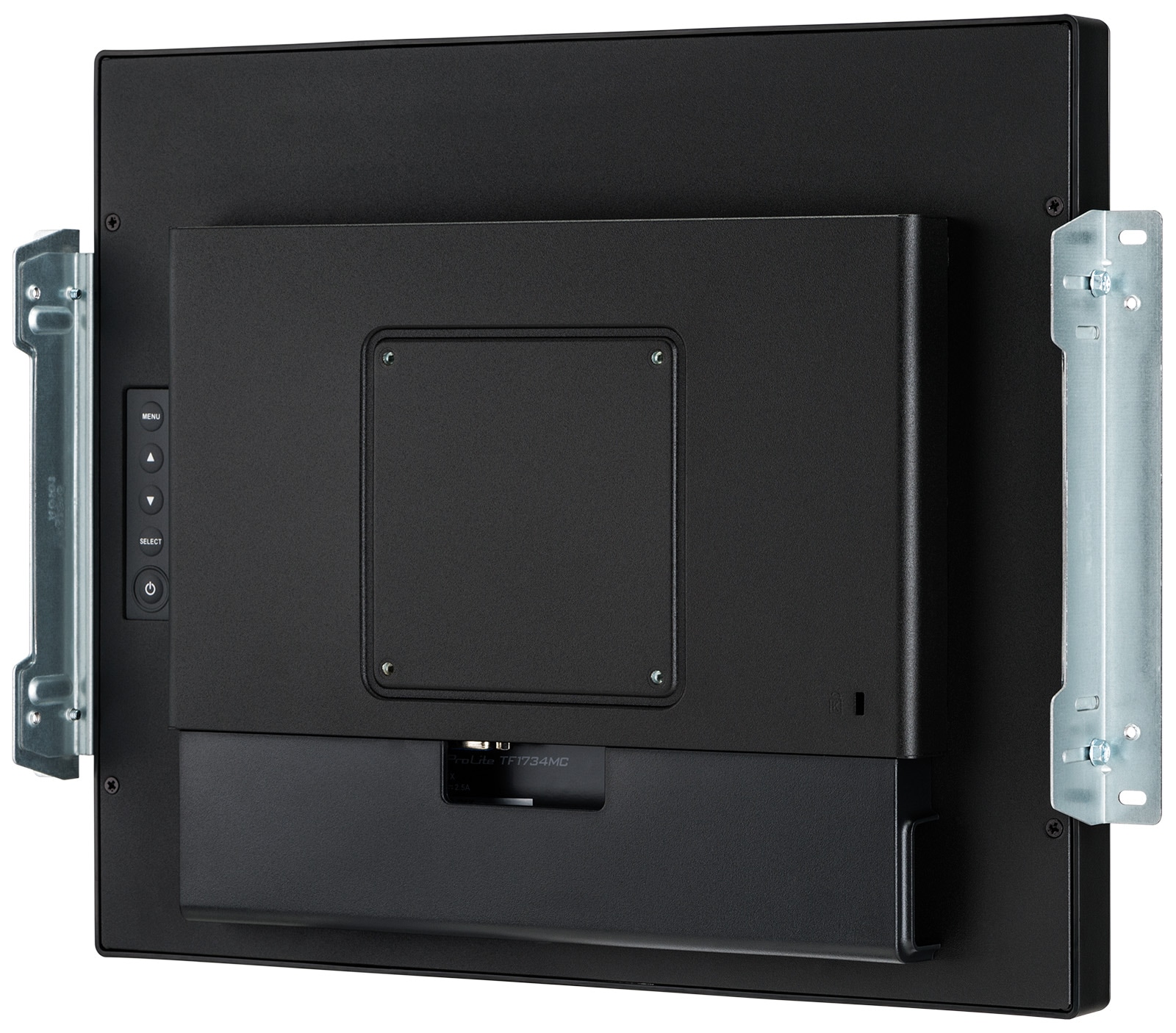

The ProLite TF1734MC 17" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The screen is IP65 rated which means it is dust and water resistant.For ease of integration, the TF1734MC can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.

Colour option
iiyama ProLite TF1734MC-B6X
Device type
Open frame touchscreen monitor
Model
iiyama ProLite TF1734MC-B6X
Colours
Black
Touch technologies
Projected Capacitive
Diagonal size
17"
Aspect ratio
5:4
Active area (mm)
338 x 270.5
Width (mm)
369
Height (mm)
307

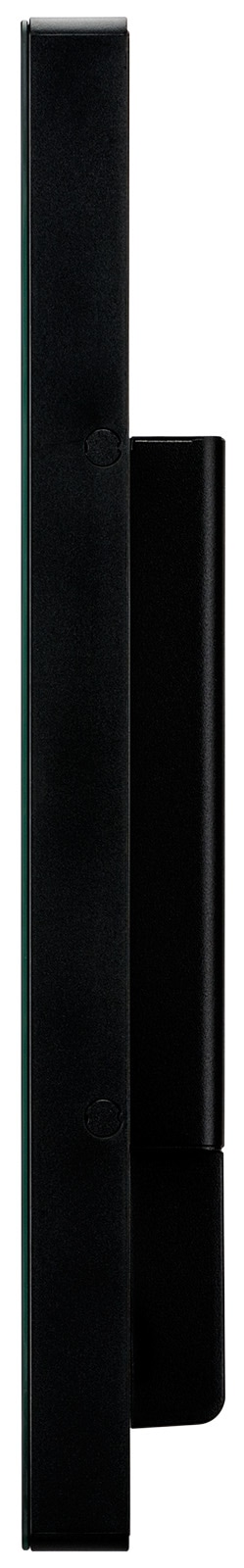

Depth (mm)
47.5
Net weight
3.6 kg
Resolution
1280 x 1024
Brightness (sole LCD panel)
350 cd/m²
Brightness (Pro. Cap)
315 cd/m²
Response time
5 ms
Viewing angle
horizontal/vertical: 170°/160°
Contrast ratio
1000:1

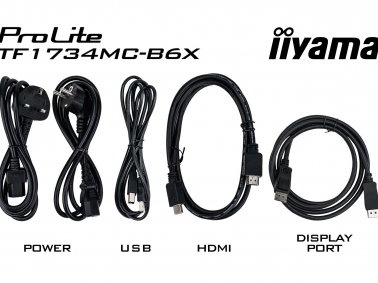

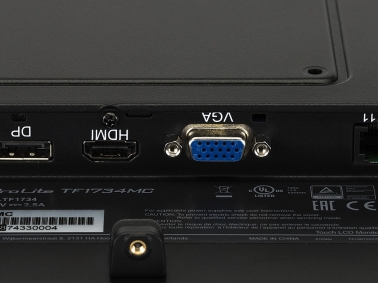

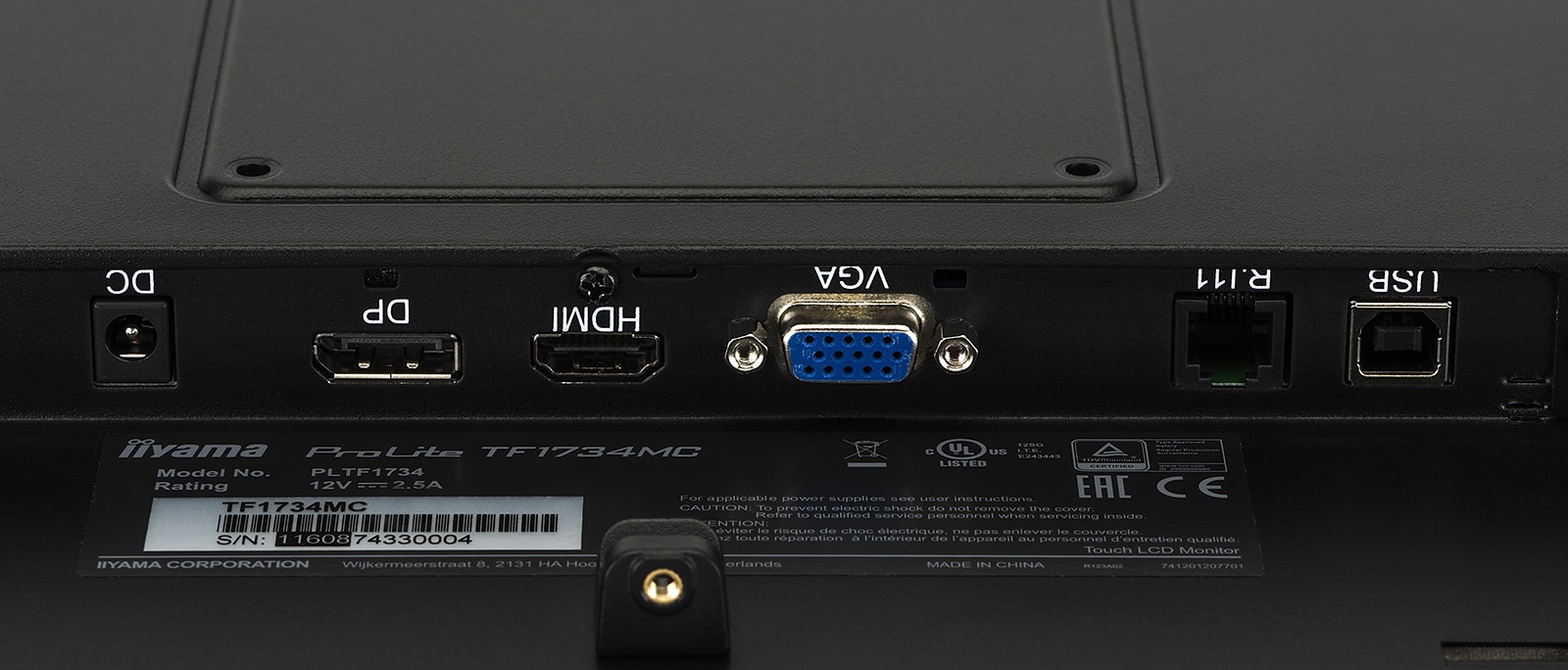

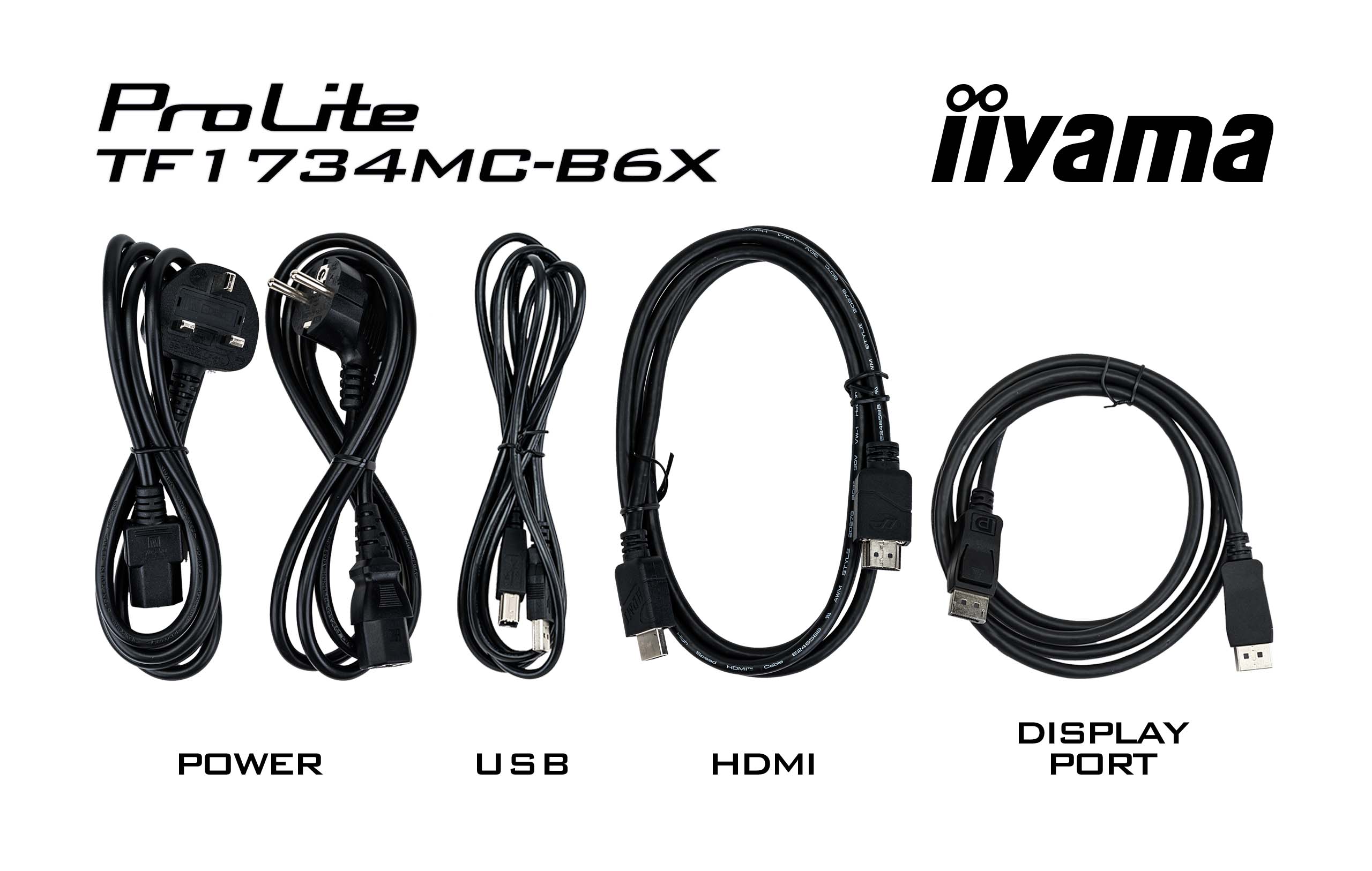

Video input - connector
VGA, HDMI, DisplayPort
Touchscreen interface
USB
Power consumption (typical)
13W
Power supply - type
External
Power supply - voltage
12V

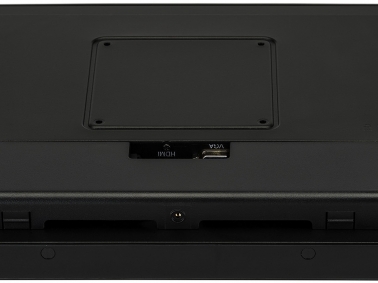

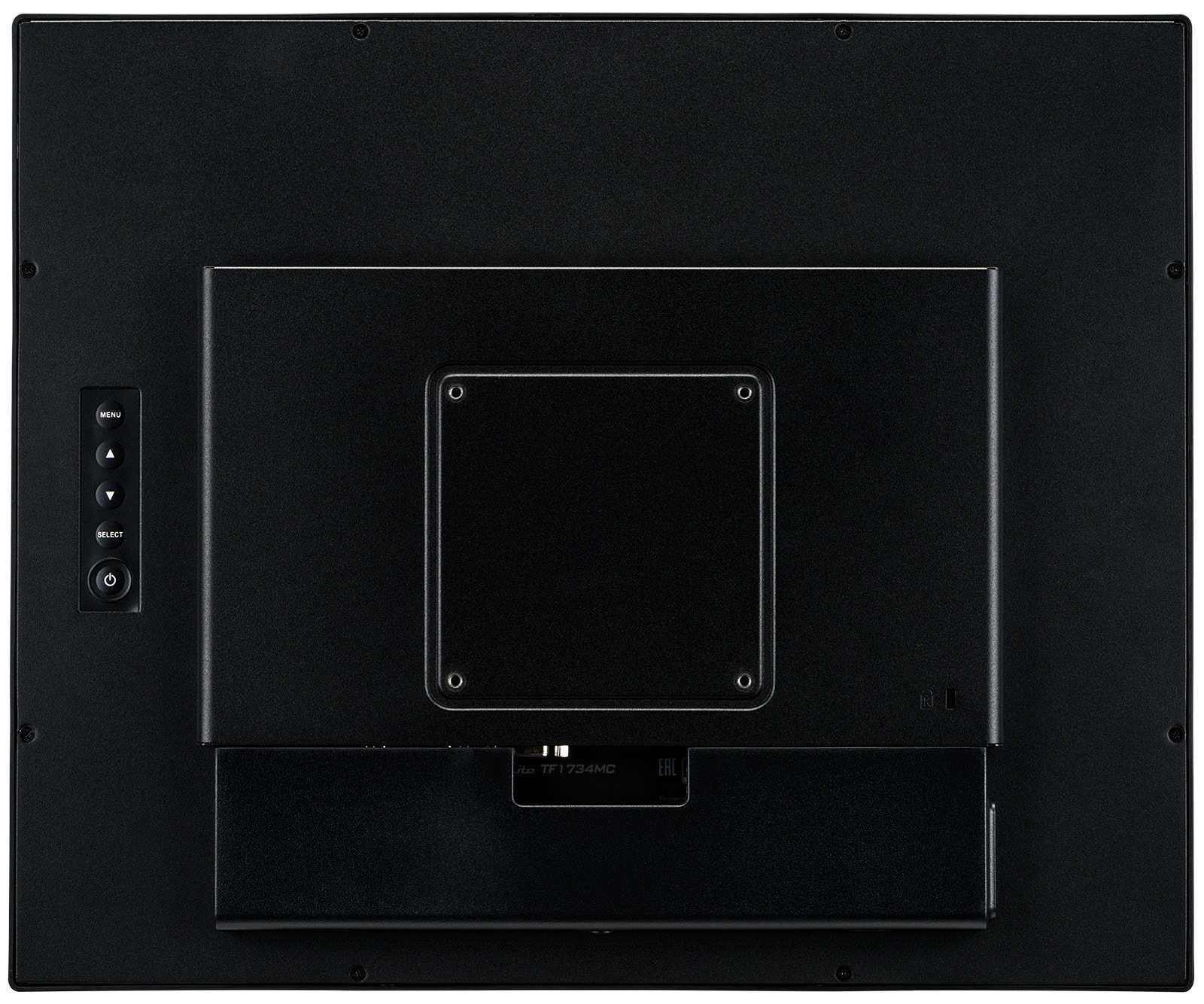

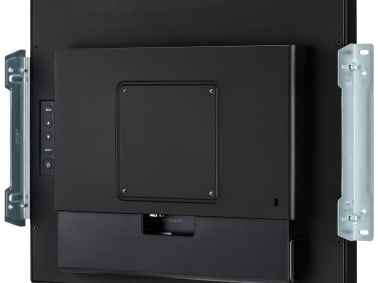

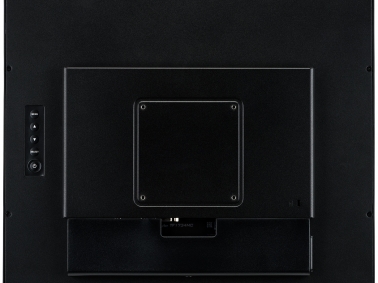

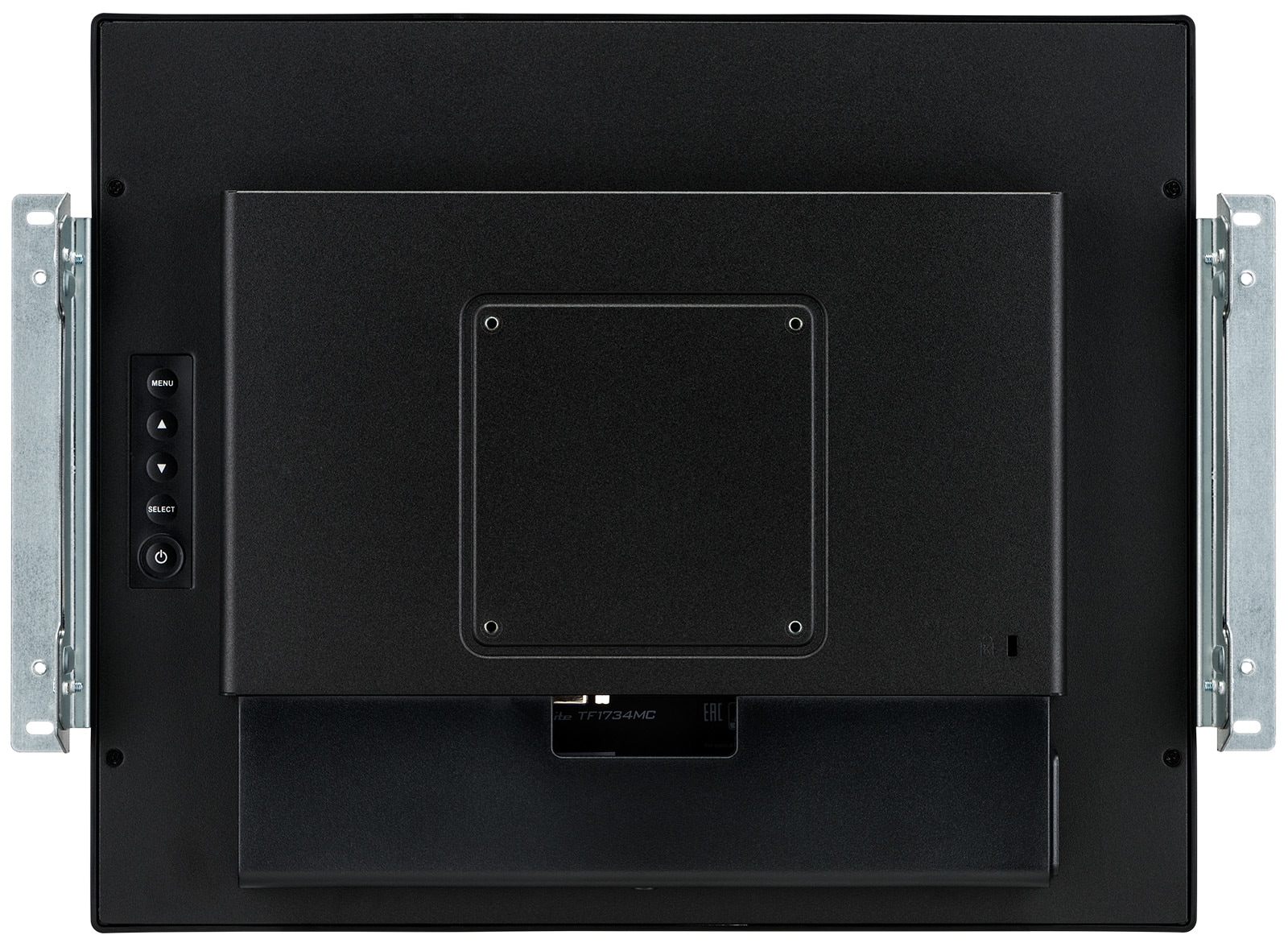

Assembly options - Assembly without the base
VESA 100 mm

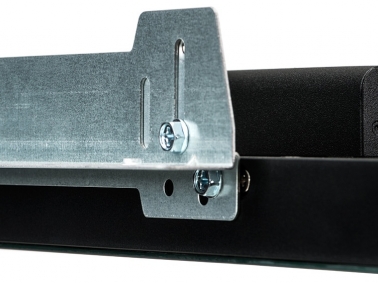

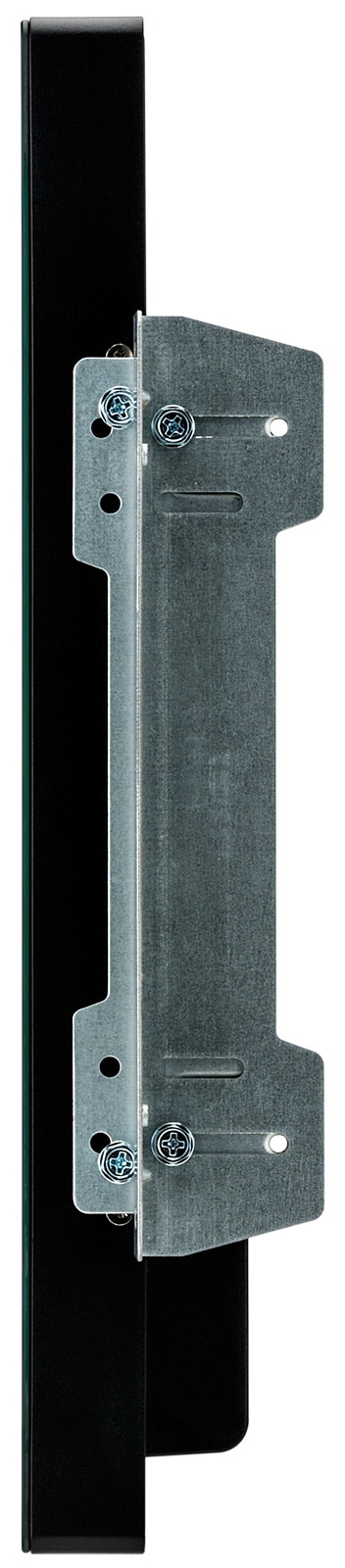

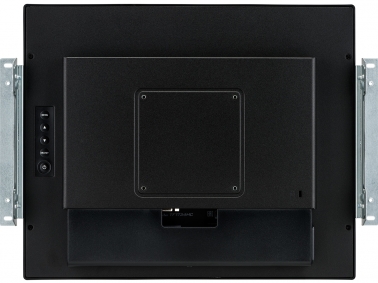

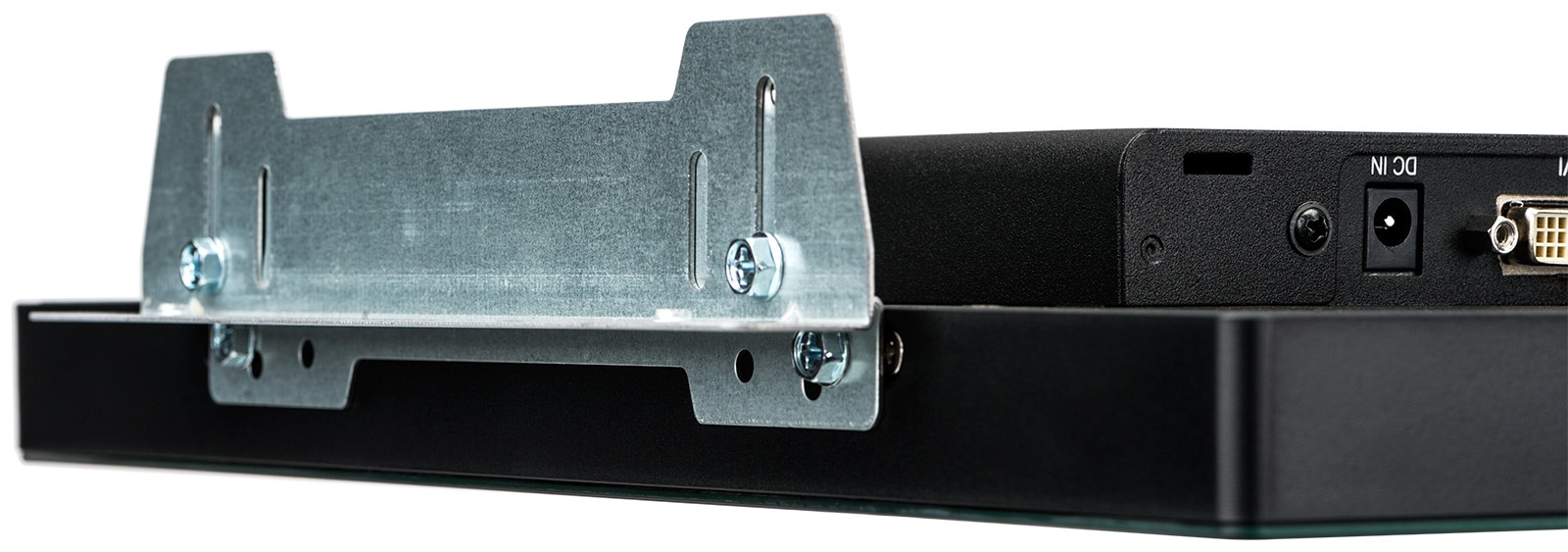

Assembly options - available accessories
Mounting brackets (not included)
Warranty
36 months
Regulatory approvals and declarations
CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, REACH
