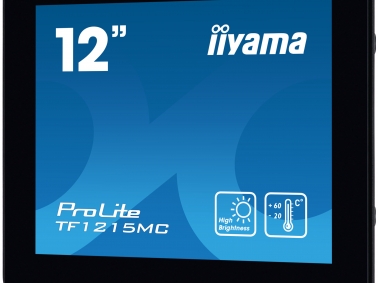

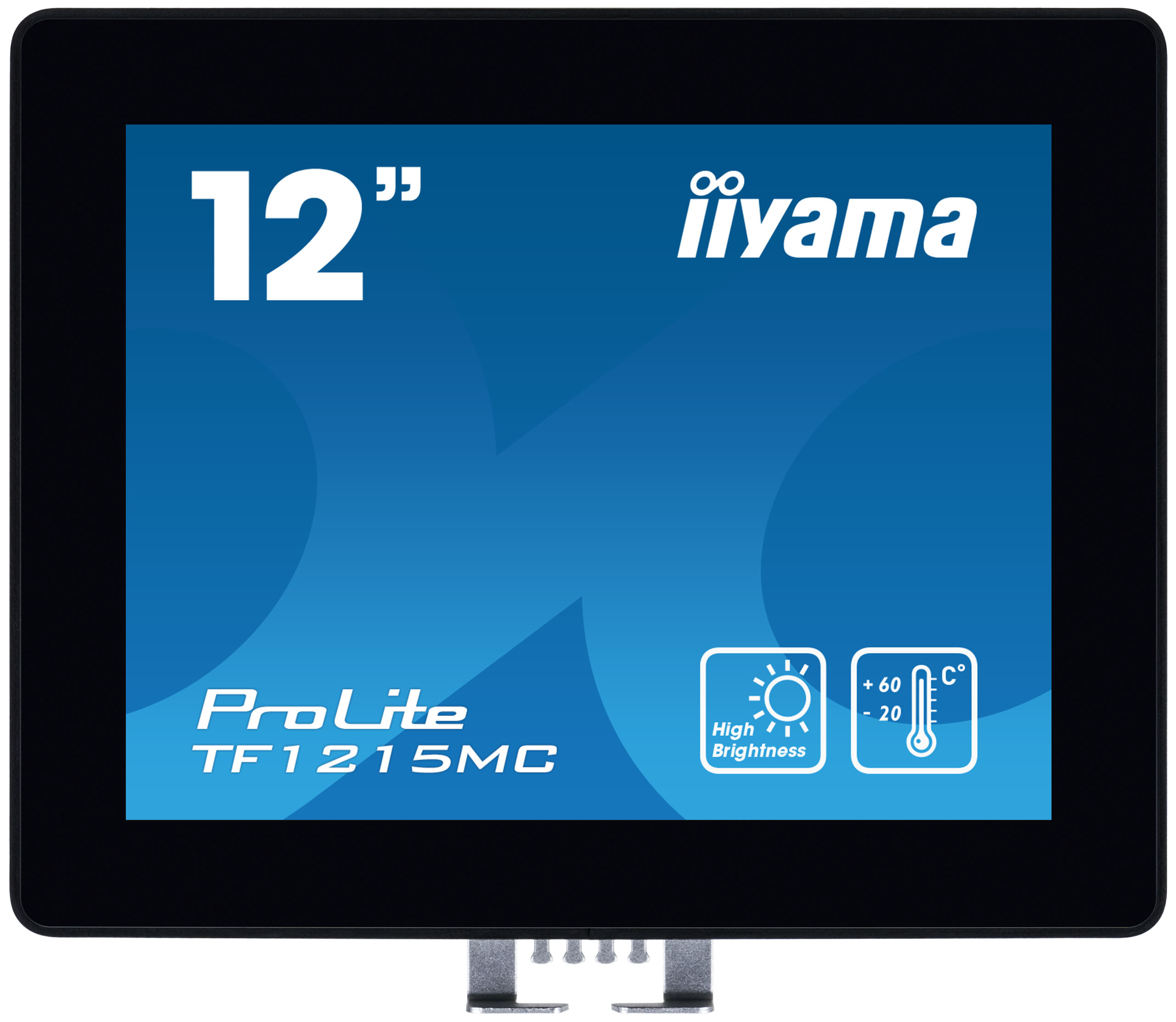

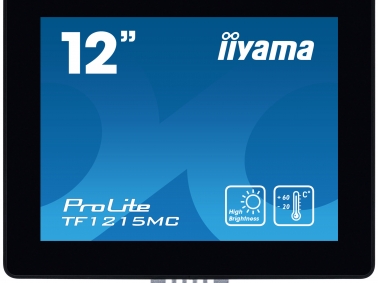

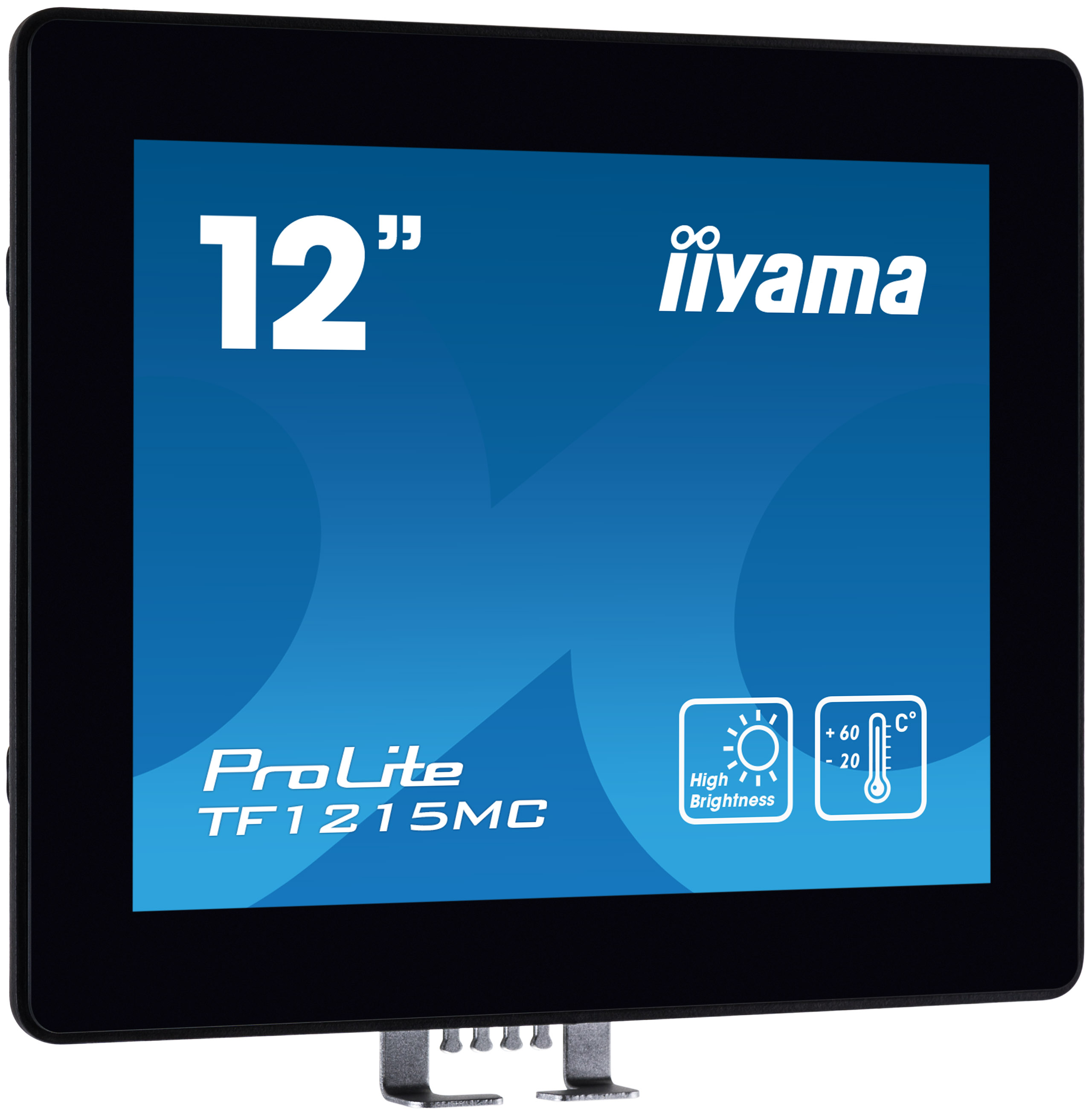

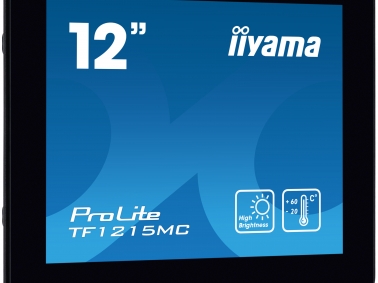

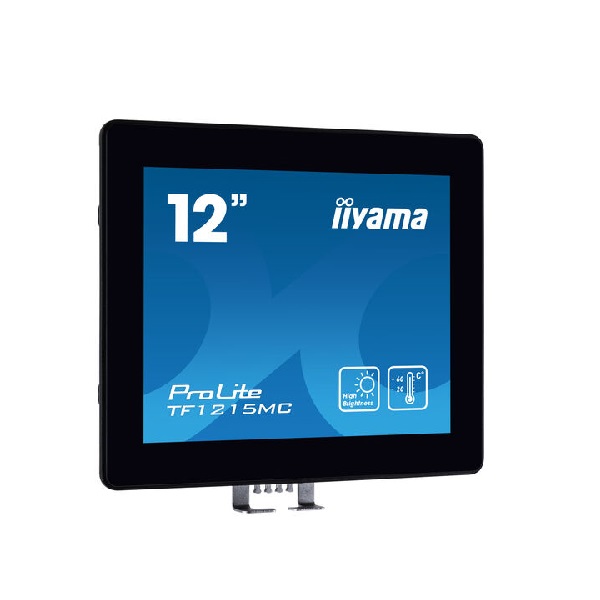

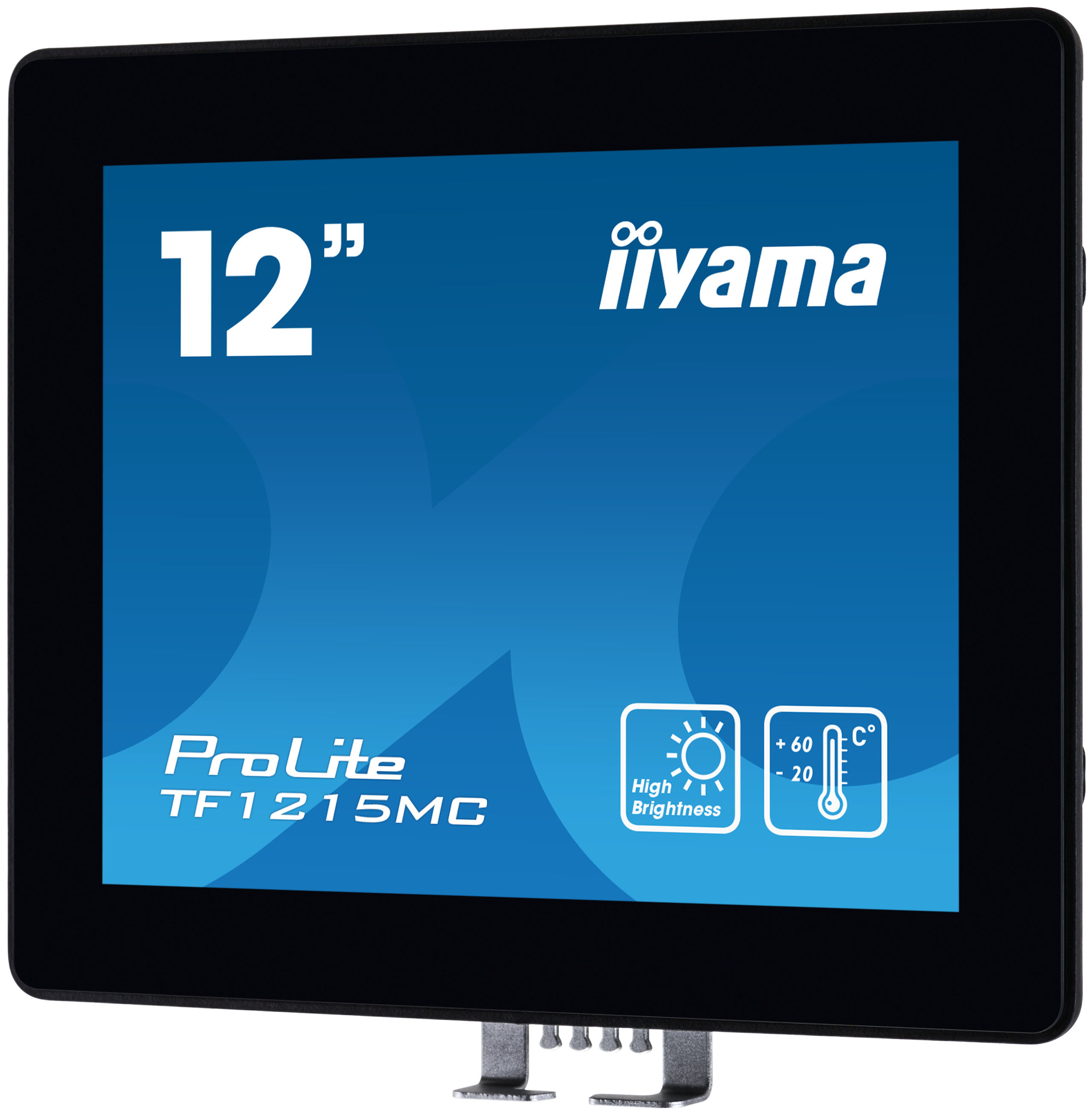

iiyama ProLite TF1215MC-B1

12.1’’ PCAP 10pt touchscreen solution for pick-up points

Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks in semi-outside environments like petrol or train stations. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Colour option
iiyama ProLite TF1215MC-B1
Device type
Open frame touchscreen monitor
Model
iiyama ProLite TF1215MC-B1
Colours
Black
Touch technologies
Projected Capacitive
Diagonal size
12.1"
Aspect ratio
4:3
Active area (mm)
245.8 x 184.3
Width (mm)
308.5
Height (mm)
248

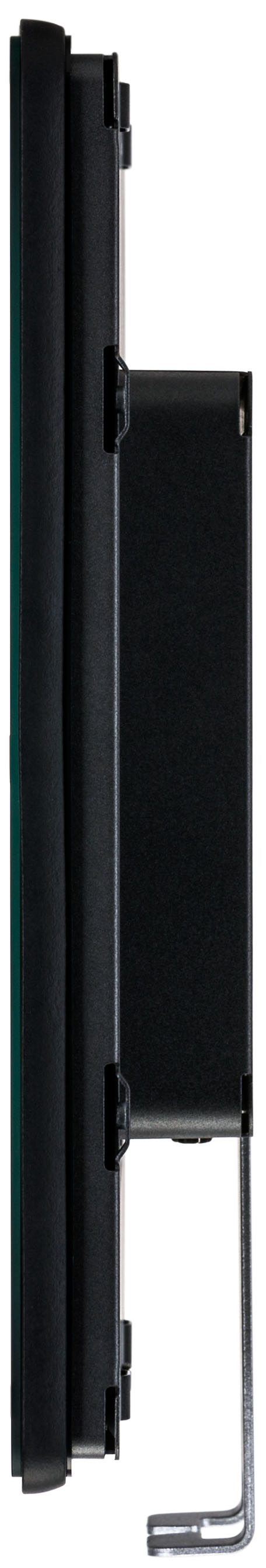

Depth (mm)
41.5
Net weight
2.1 kg
Resolution
1024 x 768
Brightness (sole LCD panel)
540 cd/m²
Brightness (Pro. Cap)
450 cd/m²
Response time
25 ms
Viewing angle
horizontal/vertical: 178°/178°
Contrast ratio
1000:1

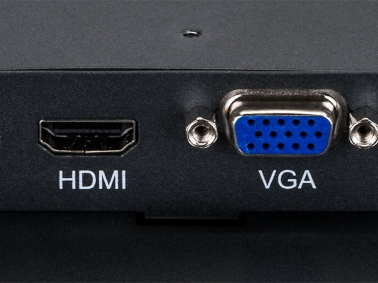

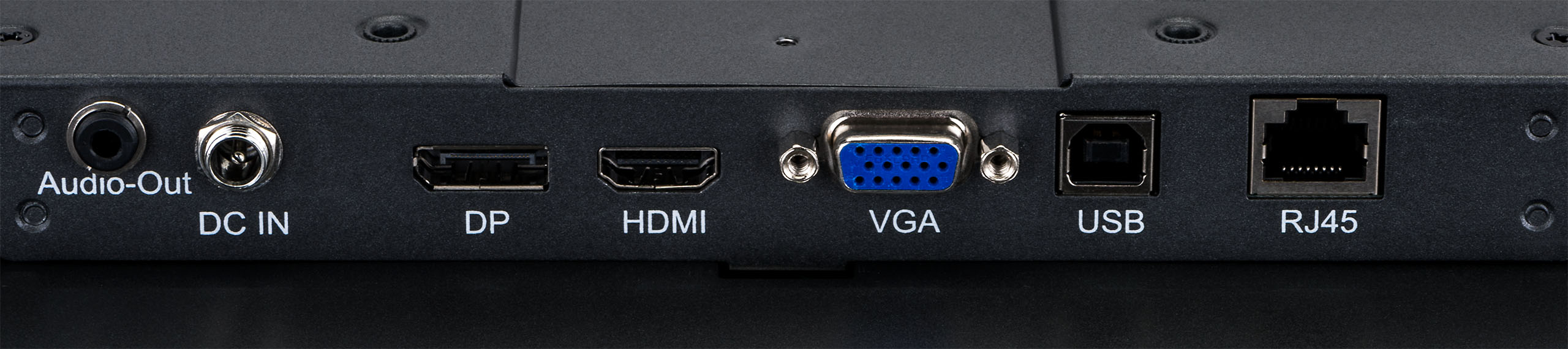

Video input - connector
VGA, HDMI, DisplayPort
Touchscreen interface
USB
Power consumption (typical)
10W
Power supply - type
external
Power supply - voltage
12V

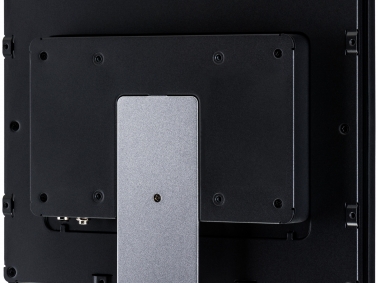

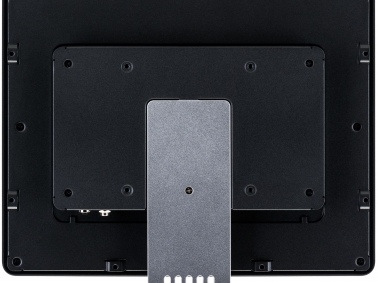

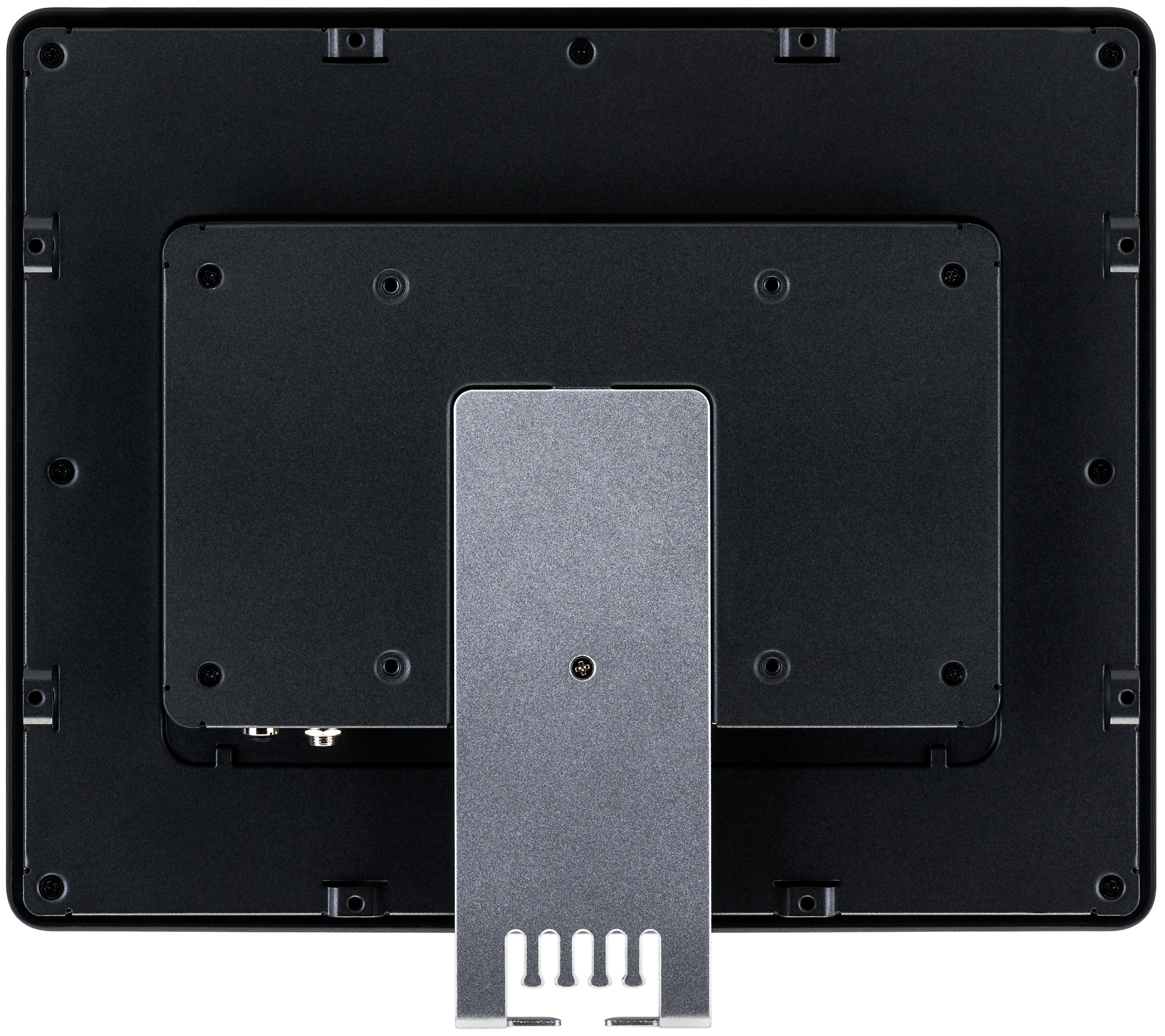

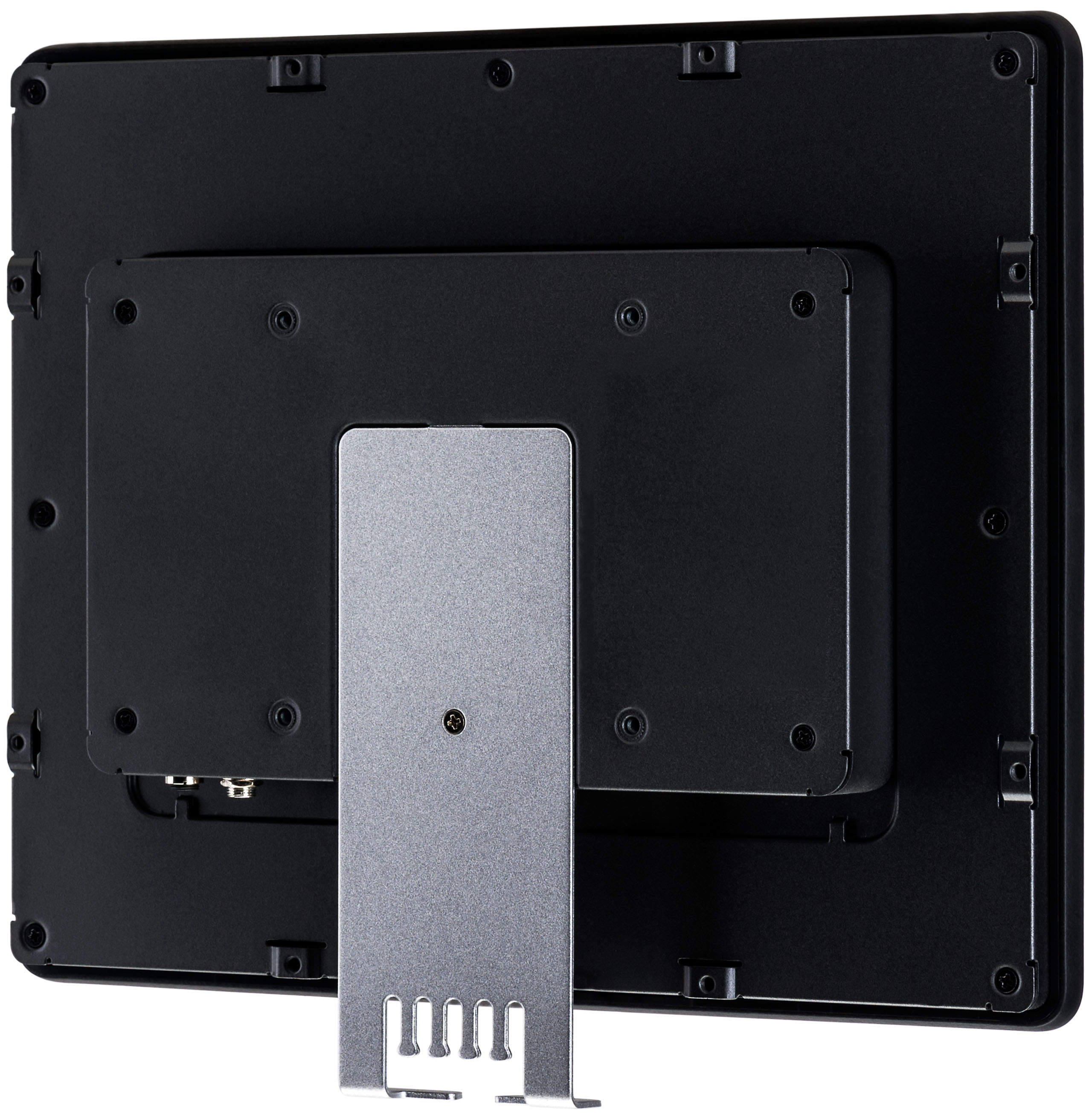

Assembly options - Assembly without the base
VESA 100 mm
Assembly options - available accessories
Mounting brackets (not included)
Warranty
36 months
