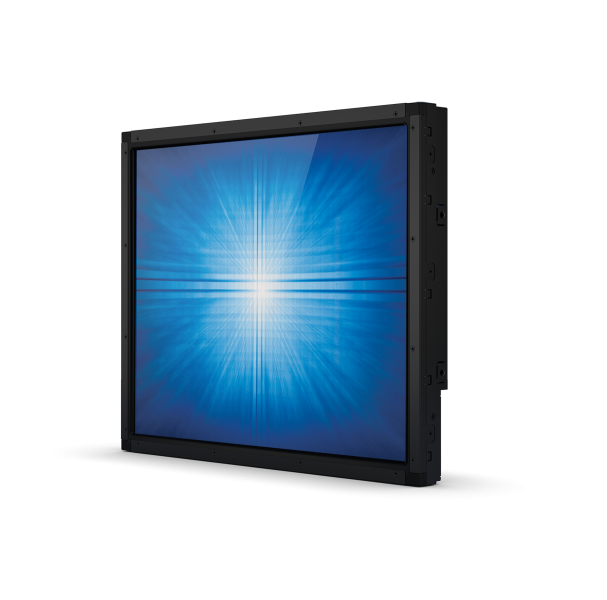

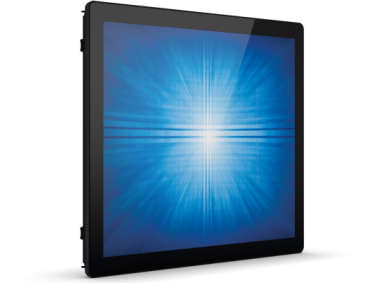

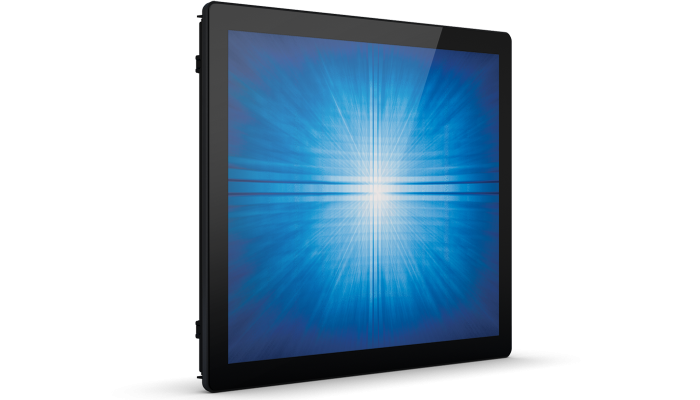

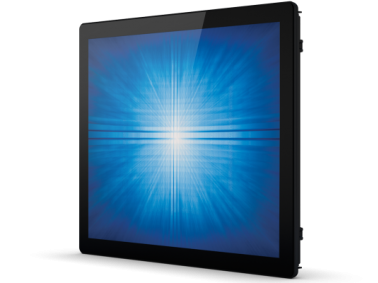

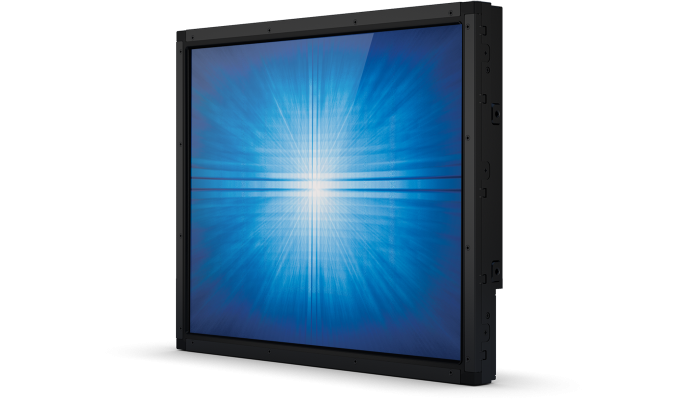

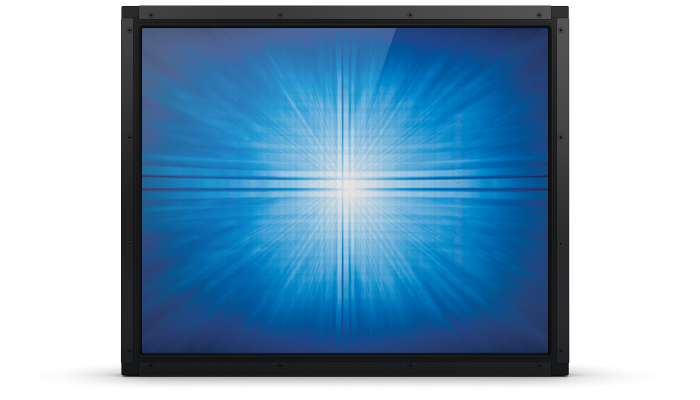

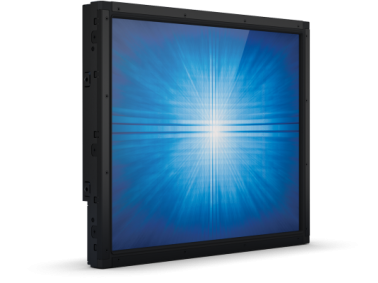

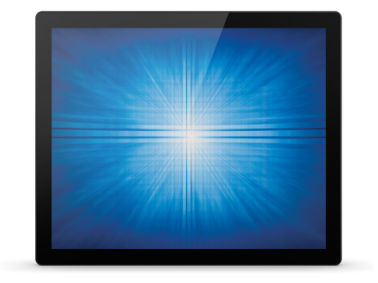

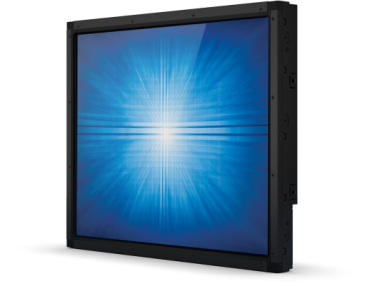

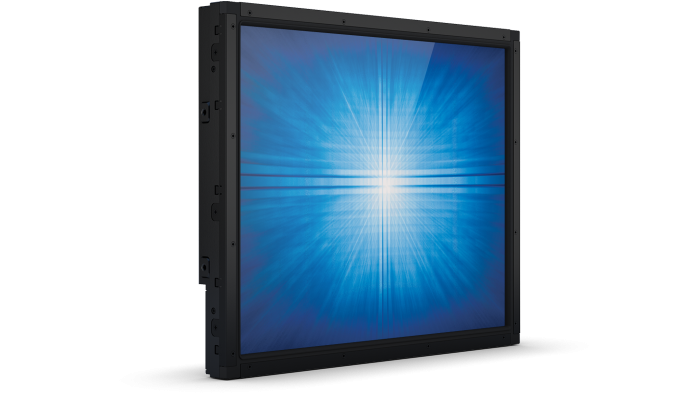

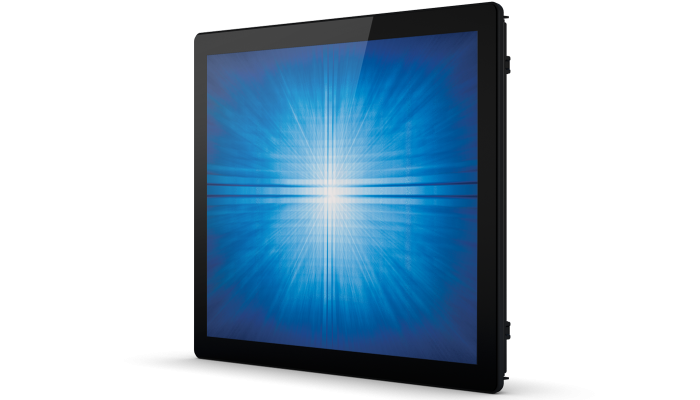

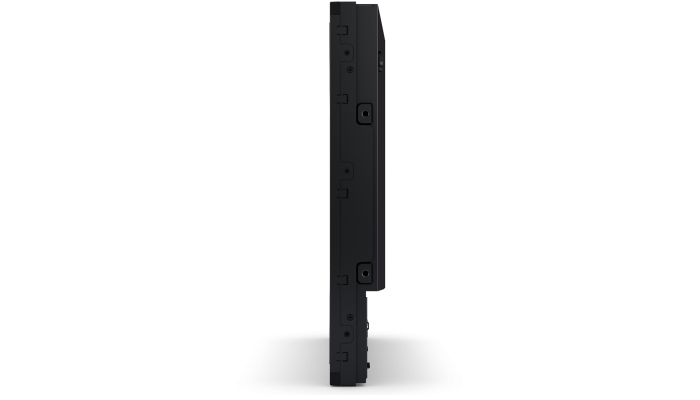

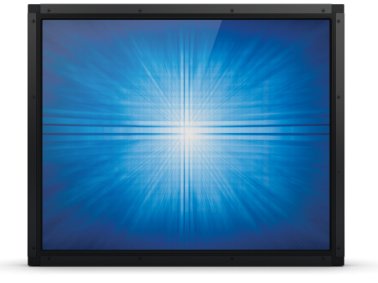

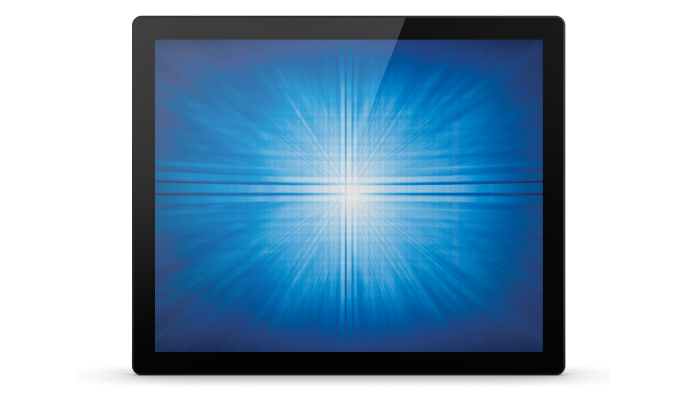

ELO 1991L

19" open frame touchscreen monitor from Elo 90-series with standard aspect ratio   (1291L/1590L/1598L/1790L/1990L/1991L).
90-series devices are intended for continuous work and meet the requirements of the industrial environment (light industry class).

For more information (specification, configurations and download section) please visit official Elo Touch Solutions website: Link

Colour option
ELO 1991L
Device type
Open frame touchscreen monitor
Model
Elo Touch Solutions 1991L
Colours
Black
Touch technologies
  • IntelliTouch
  • AccuTouch
  • SecureTouch
  • Projected Capacitive"
Diagonal size
19
Aspect ratio
5:4
Active area (mm)
374.78 x 299.83
Width (mm)
  • IntelliTouch, SecureTouch, AccuTouch: 414.7
  • Projected Capacitive: 420.1
Height (mm)
  • IntelliTouch, SecureTouch, AccuTouch: 342.7
  • Projected Capacitive: 348.1

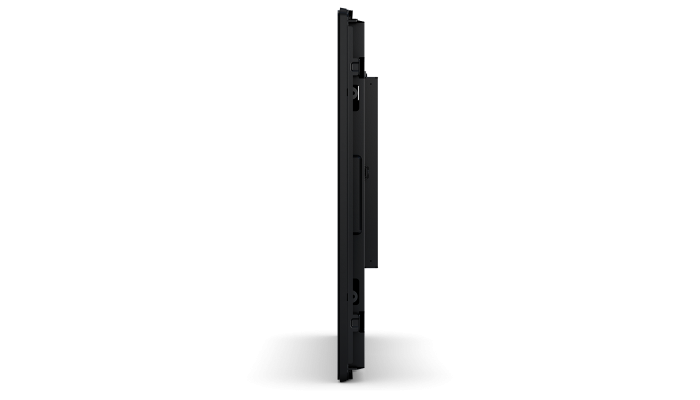

Depth (mm)
  • IntelliTouch, SecureTouch, AccuTouch: 50
  • Projected Capacitive: 40.7
Net weight
4.6 kg
Gross weight
7 kg
Resolution
1280 x 1024
Other supported resolutions
640 x 480, 720 x 400, 800 x 500, 800 x 600, 1024 x 768, 1280 x 800, 1280 x 1024
Brightness (sole LCD panel)
250 cd/m2
Brightness (IntelliTouch / iTouch)
225 cd/m2
Brightness (AccuTouch)
200 cd/m2
Brightness (SecureTouch)
200 cd/m2
Brightness (Pro. Cap)
225 cd/m2
Response time
14 ms
Viewing angle
horizontal: 89°, vertical: ±89°
Contrast ratio
1000:1
Input video format
  • Analog
  • Digital
Video input - connector
Mini D-Sub 15-Pin VGA, DisplayPort V1.1a, HDMI 1.3
Touchscreen interface
USB
Power consumption (typical)
17W
Power supply - type
External (offered separately)
Power supply - voltage
12V
MTBF
50 000 hours (demonstrated)
OSD - OSD control type
Digital
OSD - buttons
Menu, Up, Down, Select, Power
OSD - functions
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
OSD - OSD public functions
Lockouts: OSD, Power

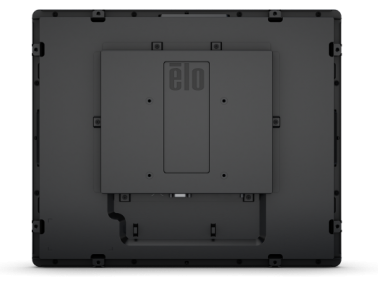

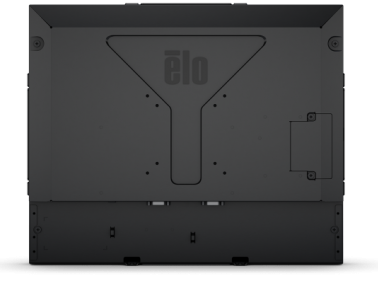

Assembly options - Assembly without the base
  • IntelliTouch, AccuTouch, SecureTouch: VESA 75 mm / 100 mm
  • Projected Capacitive: VESA 100 mm
Assembly options - available accessories
Mounting brackets (included)
Warranty
36 months
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC
Sealability
  • Touchscreen sealed to bezel
  • Touchscreen sealed to LCD
