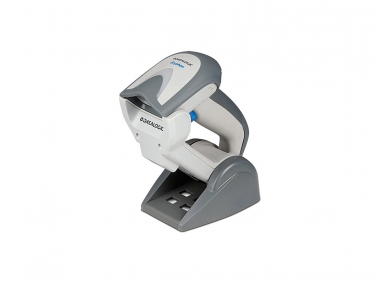

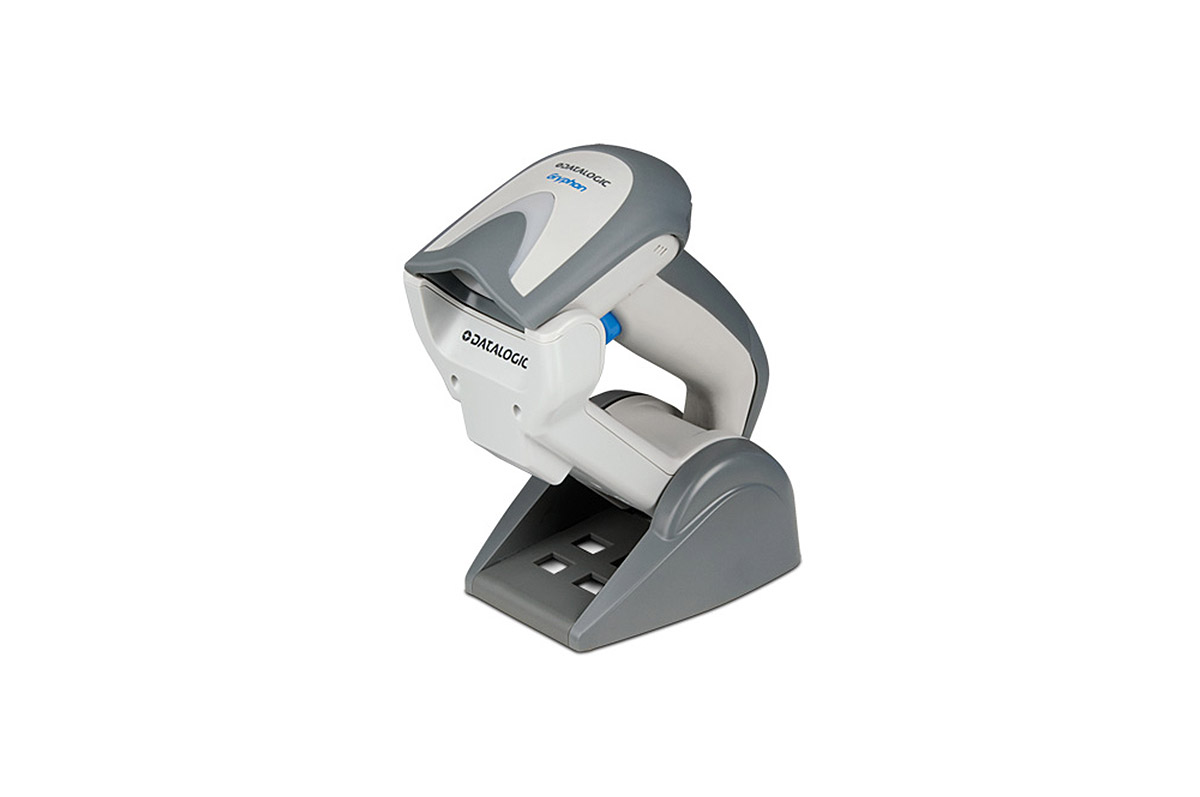

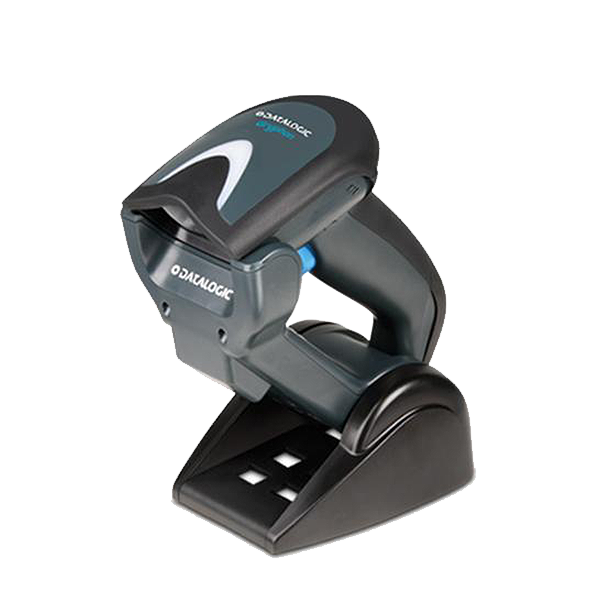

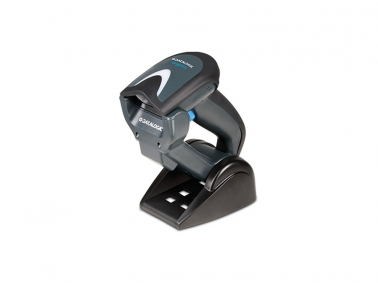

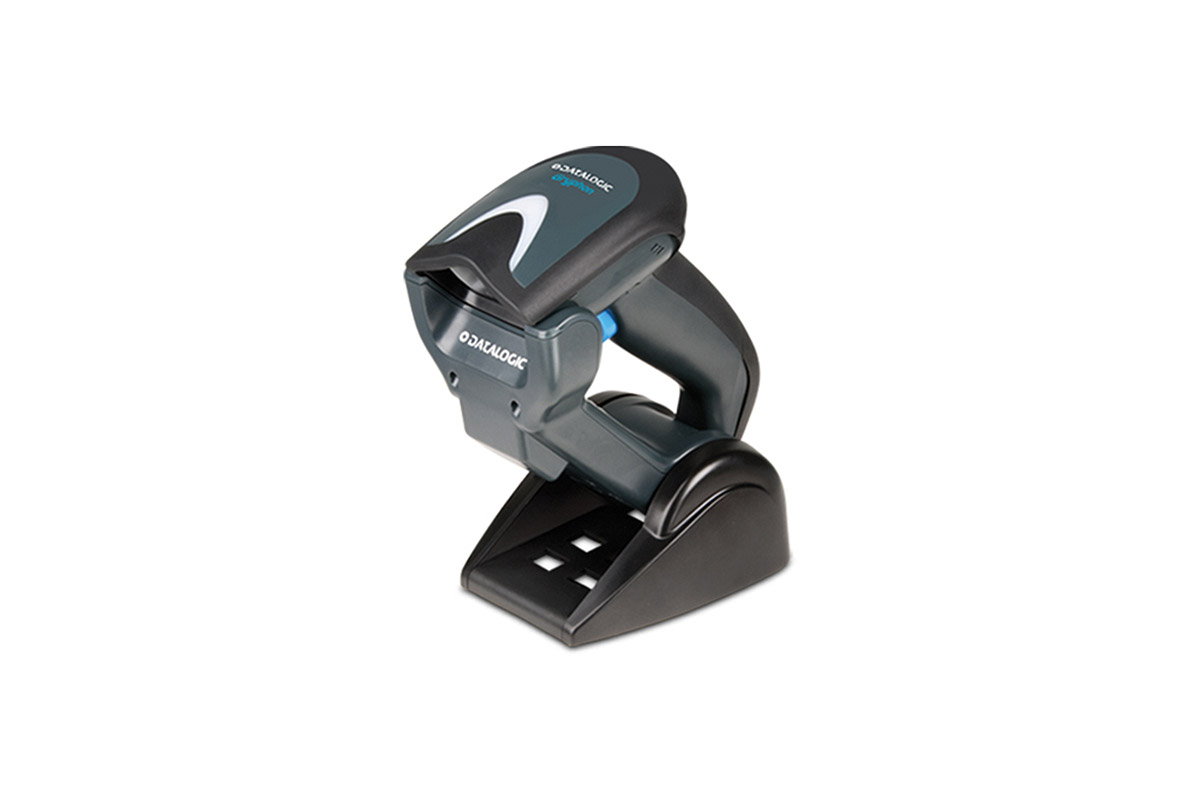

Datalogic Gryphon GM4400

Gm4400 is a handheld, cordless linear imager code scanner designed on the platform of one of the most recognizable lines of Datalogic scanners - Gryphon. Thanks to the Datalogic's patented technology , Gryphon provides wireless communication within a range of up to 30 m from the base, increasing the user's work comfort and eliminating the restrictions associated with the use of cables.

Colour option
Datalogic Gryphon GM4400

The scanner has an Area Imager scanning module equipped with a 4-point viewfinder that supports virtually all formats of one- and two-dimensional codes. An important advantage is also the increased tolerance to motion, which makes it possible to read codes placed on objects, e.g. during production. In addition, the Gryphon 4400 series devices use the technology characteristic for Datalogic: Motionix (automatic switching of the device between manual and automatic operating mode) and Green Spot (a method of notifying about the correct reading of the code).

A unique feature of the model in the wireless version is the possibility of using the communication base as a stand for work in the presentation mode while simultaneously charging the reader battery.

The most important product features

  • Green Spot technology - informing the user about the correctly read code
  • Motionx technology
  • 1D code reading, including high resolution codes
  • range up to 80 cm (depending on the type of code)
  • operating mode: manual, automatic
  • protection rating: IP52
  • possibility of simultaneous scanning and loading
  • wireless radio communication - Star - with an operating range of up to 30m
  • reading and memorising codes beyond the range of the base
  • point-to-point or point-to-multi point data transmission
  • replaceable and efficient battery
Recommended devices
Honeywell Voyager 1200g
Honeywell Voyager 1200g
Honeywell Voyager 1250g
Honeywell Voyager 1250g
Honeywell Voyager 1450g
Honeywell Voyager 1450g
HF600 Youjie
HF600 Youjie
Producer
Datalogic
Reader type
  • cordless
  • area imager
Scanning template / number of scanning lines or area
area (752 x 480)
Multi-direction code reader
yes
Minimum code's contrast
25%
Reading
Code read / other options
  • 1D
  • PDF417
  • 2D
  • taking pictures
  • codes from LCD monitors, mobile device displays, etc.
  • vehicle registration certificate codes (Aztec)
Reading range for typical 13 mil UPC (0.33 mm) codes
1,5 – 40 cm
Triggering readout
  • manual
  • automatic
  • Trigger Hold Multiple option
Signalling readout
  • sound
  • light
Aimer, green spot, frame aimer
Green Spot, crosshair + 4 dots
Use (motion increase)
  • low
  • medium
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
  • trade (customer service), shops, showrooms (+++)
  • administration, libraries (+++)
  • pharmacies (+++)
  • health care (medical facilities, laboratories) (++)
  • production (++)
  • logistics (warehouses, sorting plants, etc.) (++)
  • industry (+)
Physical features
Tightness class / industrial standard
IP52
Resistance / falls on concrete
1,8 m
Operational temperature (℃)
0℃ to +50℃
Dimensions (mm)
  • 181 x 71 x 100 mm (scanner)
  • 186 x 99 x 56 mm (base)
Weight (g)
  • 245 g (scanner)
  • 246 g (base)
Interfaces
USB, KBW/PS2, RS232
Multi-interface
yes
Wireless connection
Wireless range
Radio Star (30m)
Number of scans at full charge
60000
Memory - number of data stored
1200
Automatic Batch Mode option
yes
Inventory Batch Mode option
yes
Options available

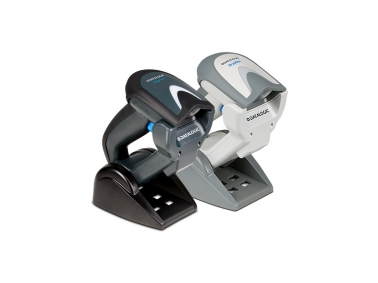

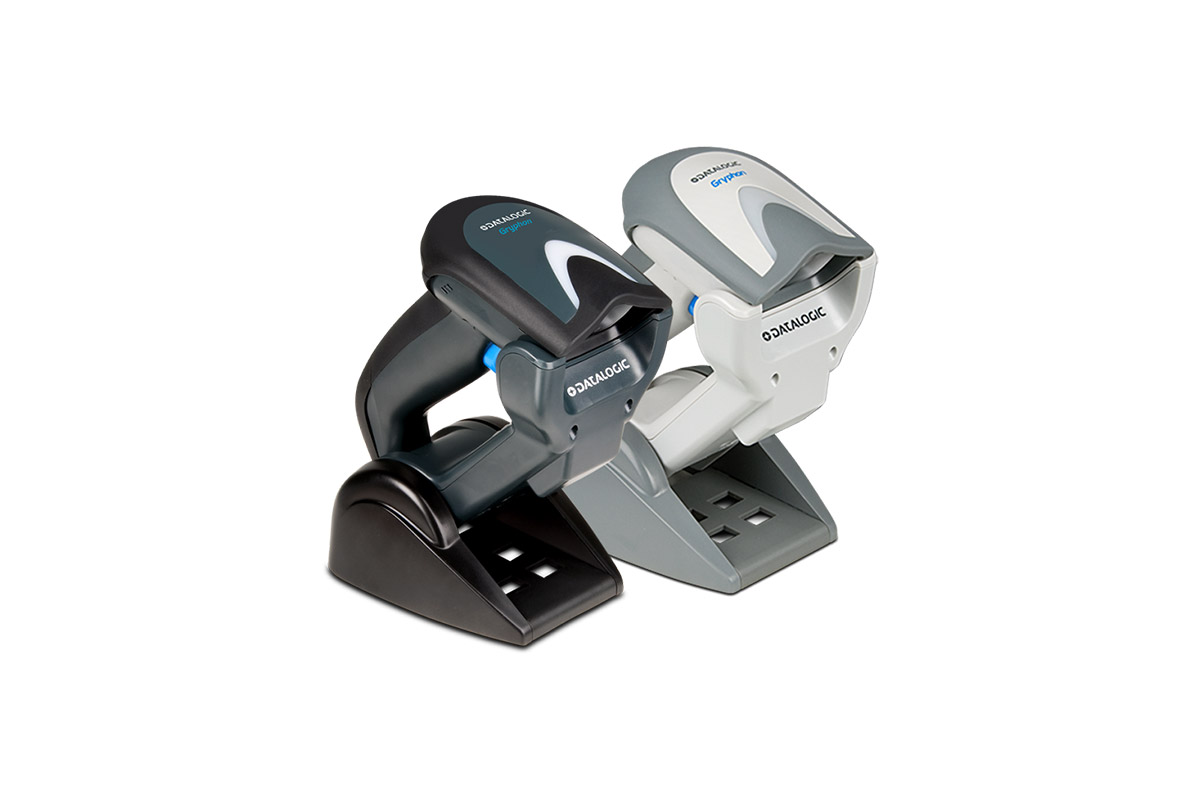

Colour options
  • grey
  • black
Possible base / base option
base
Essential / unique features
  • Motionix technology
  • possibility of connecting up to 16 scanners to one base
