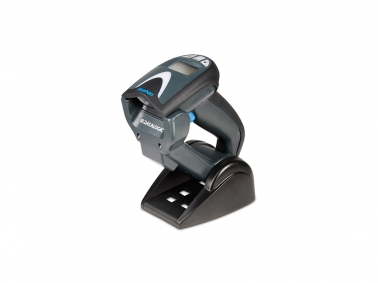

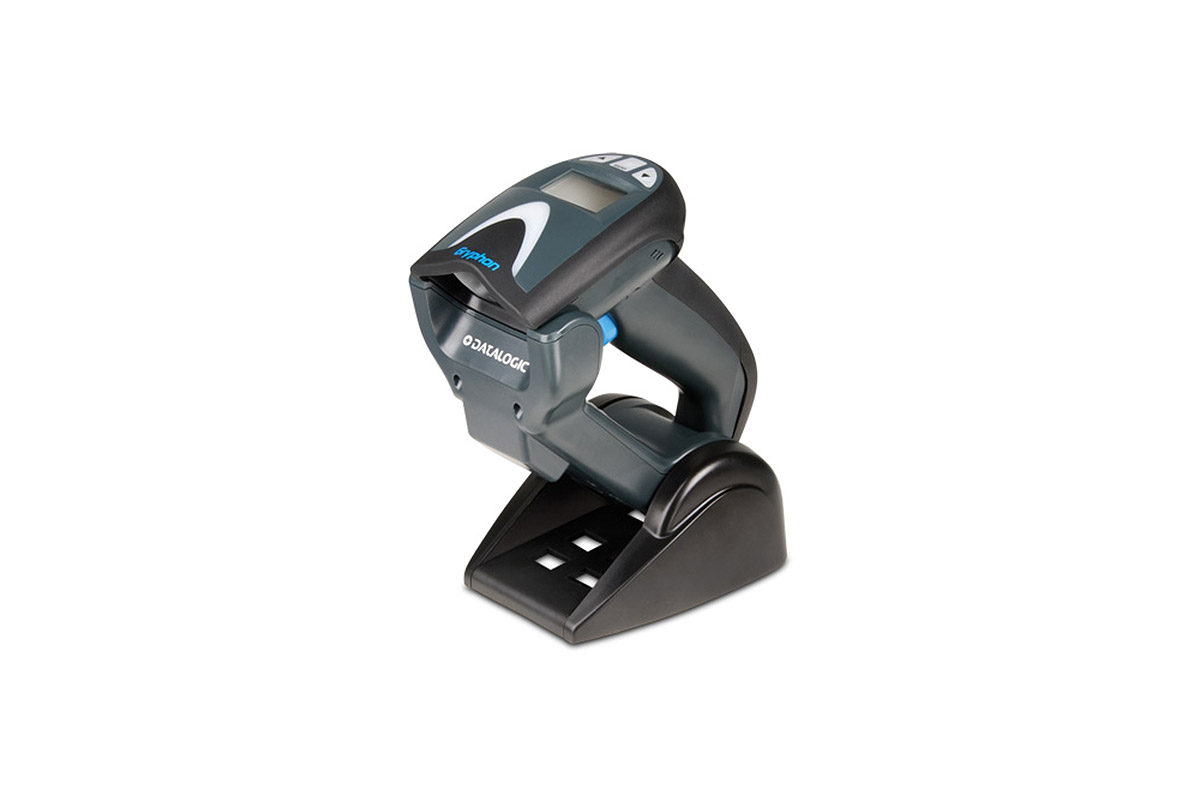

Datalogic Gryphon GM4100

GBT4100 is a handheld, cordless linear imager code scanner designed on the platform of one of the most recognizable lines of Datalogic scanners - Gryphon. Thanks to the Datalogic's patented technology, Star Radio, Gryphon provides wireless communication within a range of up to 30 m from the base, increasing the user's work comfort and eliminating the restrictions associated with the use of cables.

Colour option
Datalogic Gryphon GM4100

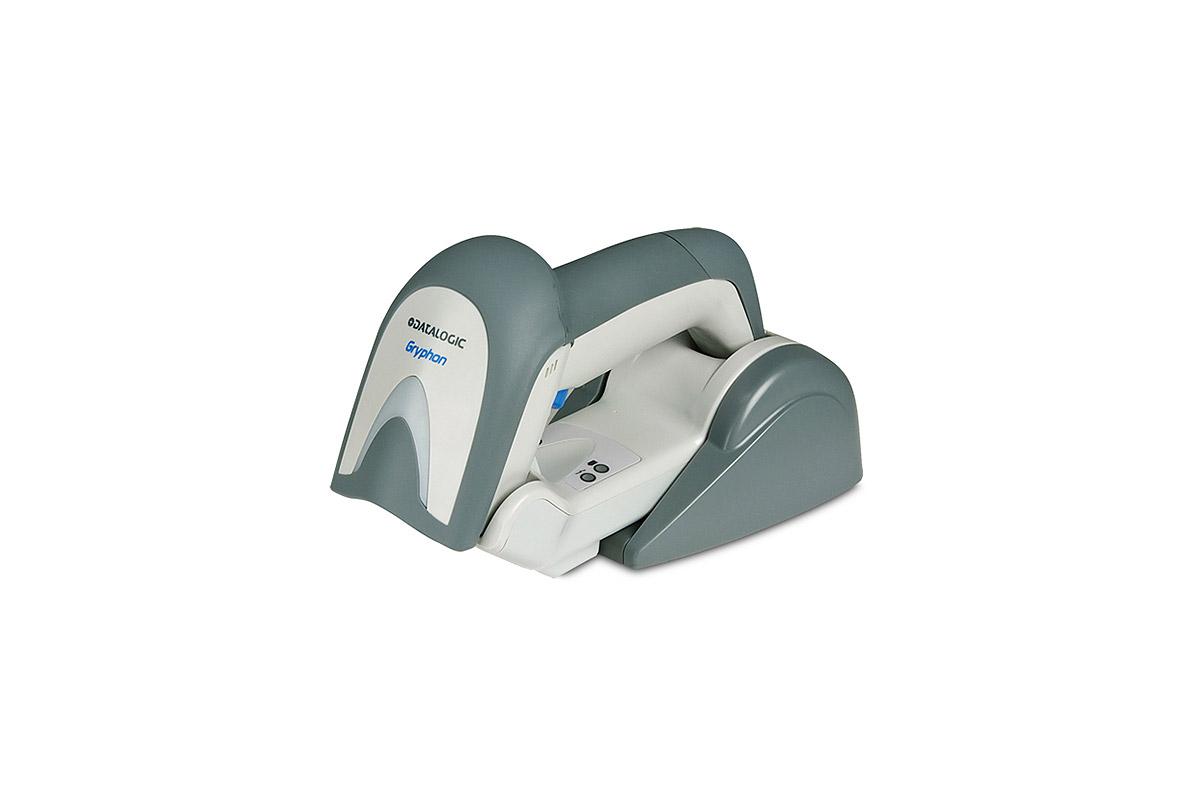

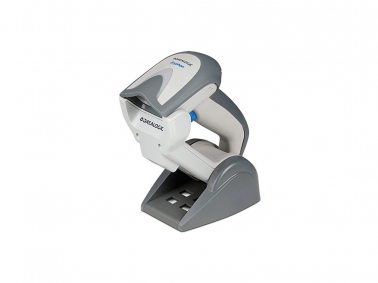

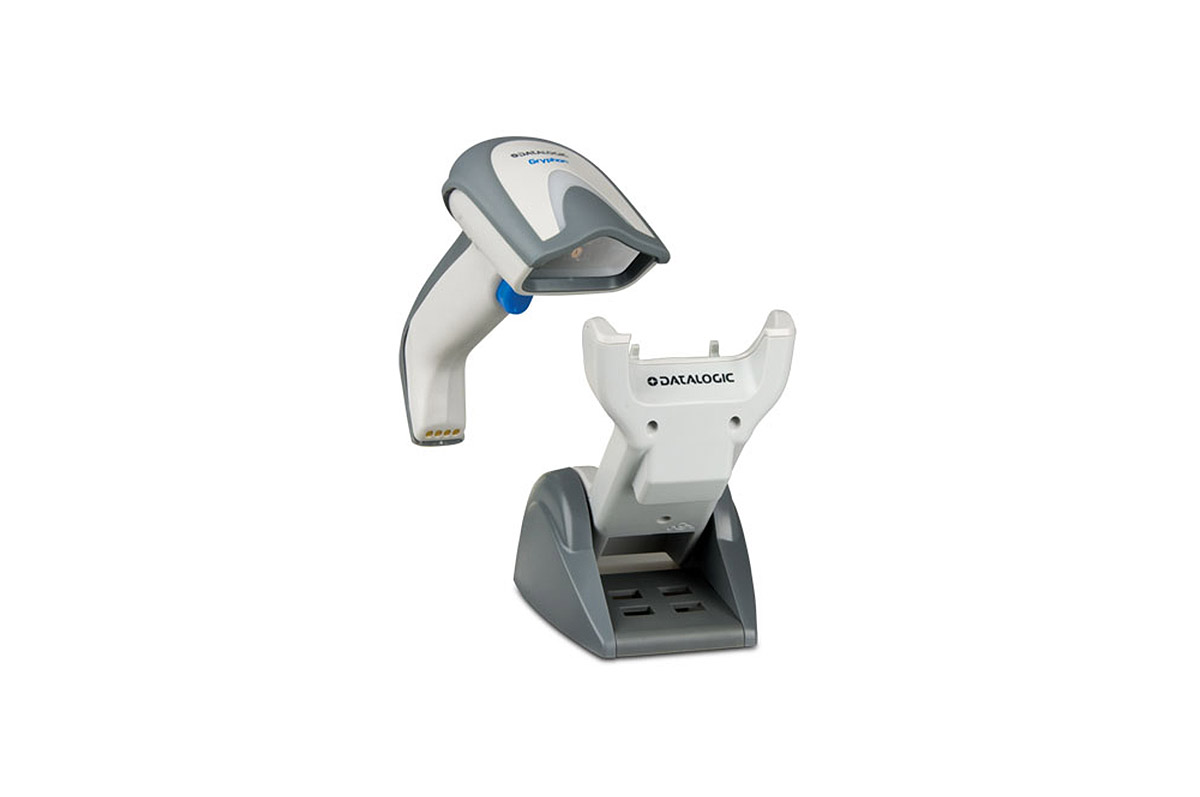

The scanner has a wide-angle scanning module that allows you to read 1D codes from a distance of up to 80 cm as well as: codes of low contrast, damaged or poor quality. An important advantage is also the way of notifying about the correct reading of the code. Through the green reading indicator (Green Spot technology), the user receives information about the correctly read code. A unique feature of this model in the wireless version is the possibility of using the communication base as a stand for work in the presentation mode while simultaneously charging the reader battery.

The most important product features

  • Green Spot technology - informing the user about the correctly read code
  • 1D code reading, including high resolution codes
  • range up to 80 cm (depending on the type of code)
  • operating mode: manual, automatic
  • protection rating: IP52
  • possibility of simultaneous scanning and loading
  • wireless radio communication - Star - with an operating range of up to 30m in 433Hz frequecy
  • reading and memorising codes beyond the range of the base
  • point-to-point or point-to-multi point data transmission
Producer
Datalogic
Reader type
  • cordless
  • line imager
Scanning template / number of scanning lines or area
1
Reading speed (number of scans / per second)
325 scans/s.
Minimum code's contrast
15%
Reading
Code read / other options
  • 1D
  • codes from LCD monitors, mobile device displays, etc.
  • poor quality, damaged, low contrast codes
Reading range for typical 13 mil UPC (0.33 mm) codes
3 – 60 cm
Triggering readout
  • manual
  • automatic
  • Trigger Hold Multiple option
Signalling readout
  • sound
  • light
Use (motion increase)
low
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
  • trade (customer service), shops, showrooms (+++)
  • administration, libraries (+++)
  • pharmacies (+++)
  • health care (medical facilities, laboratories) (++)
  • production (++)
  • logistics (warehouses, sorting plants, etc.) (++)
  • industry (+)
Physical features
Tightness class / industrial standard
IP52
Resistance / falls on concrete
1,8 m
Operational temperature (℃)
0℃ to +50℃
Dimensions (mm)
  • 181 x 71 x 100 mm (scanner)
  • 186 x 99 x 56 mm (base)
Weight (g)
  • 246 g (scanner)
  • 246 g (base)
Interfaces
USB, KBW/PS2, RS232
Multi-interface
yes
Wireless connection
Wireless range
Radio Star (30m of range)
Number of scans at full charge
50000
Memory - number of data stored
1200
Automatic Batch Mode option
yes
Inventory Batch Mode option
yes
Options available

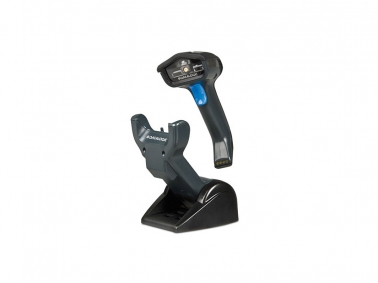

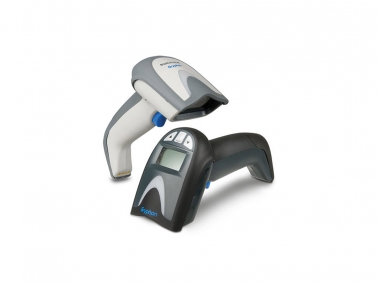

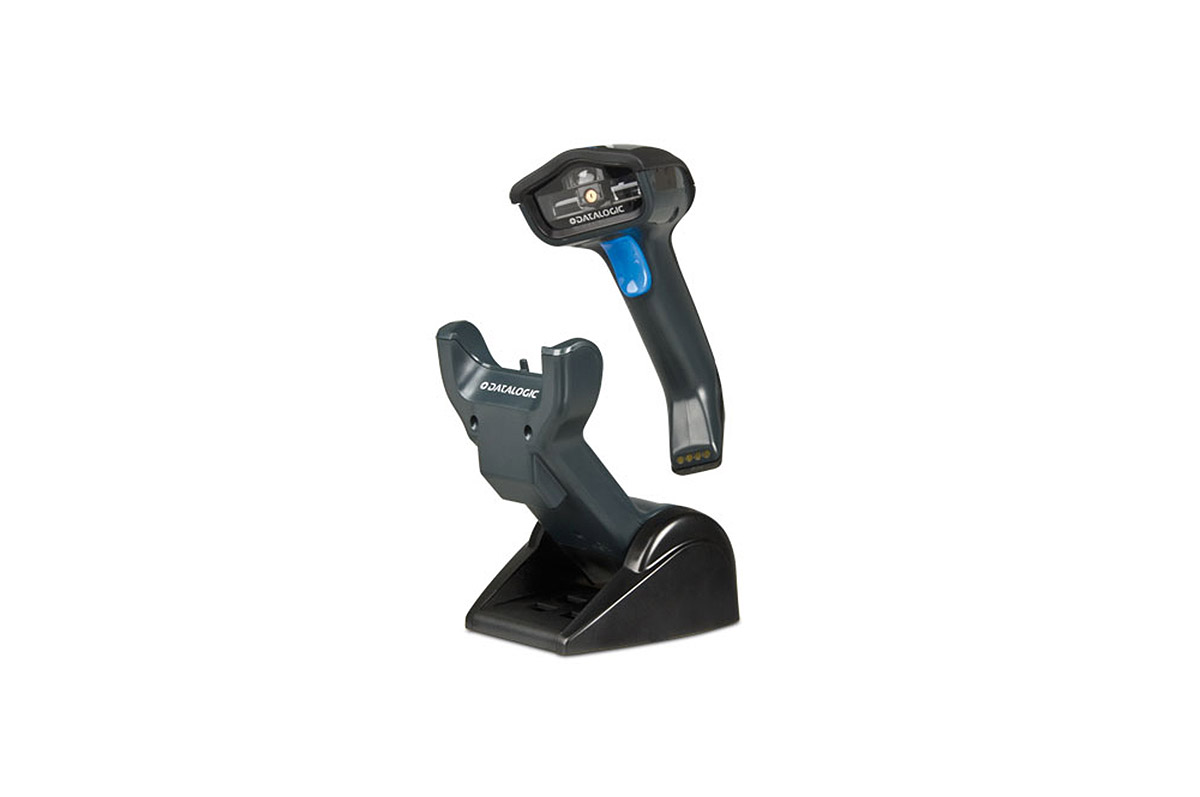

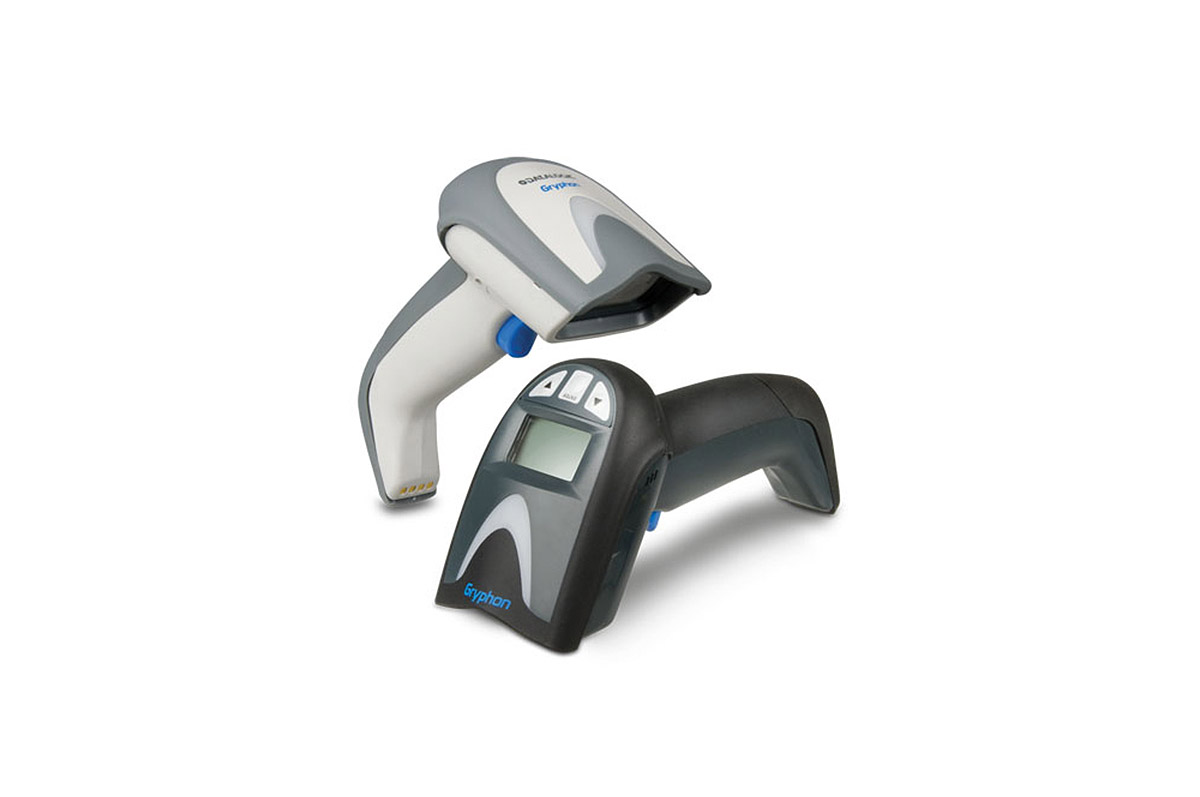

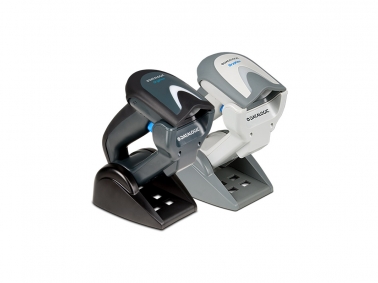

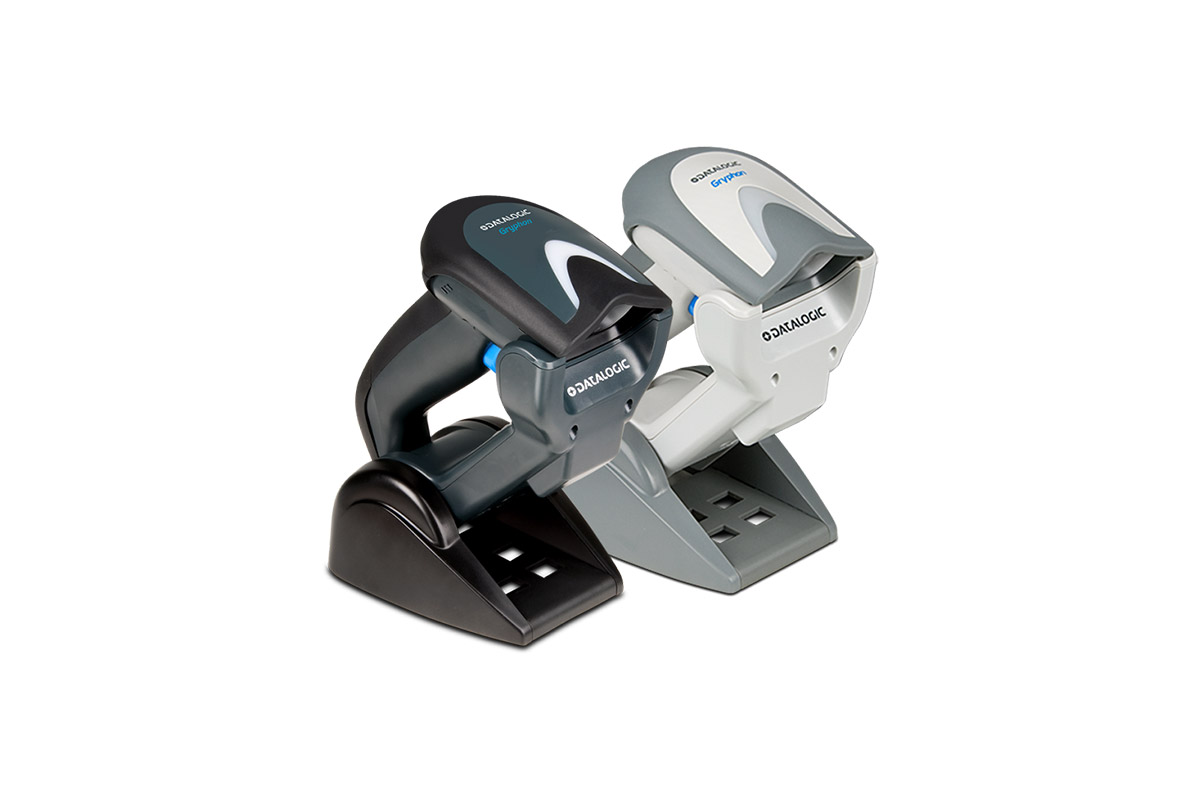

Colour options

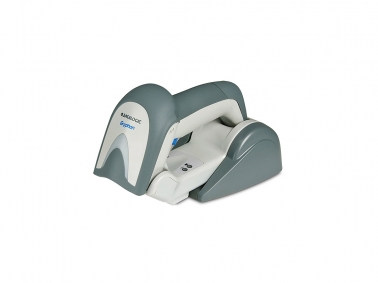

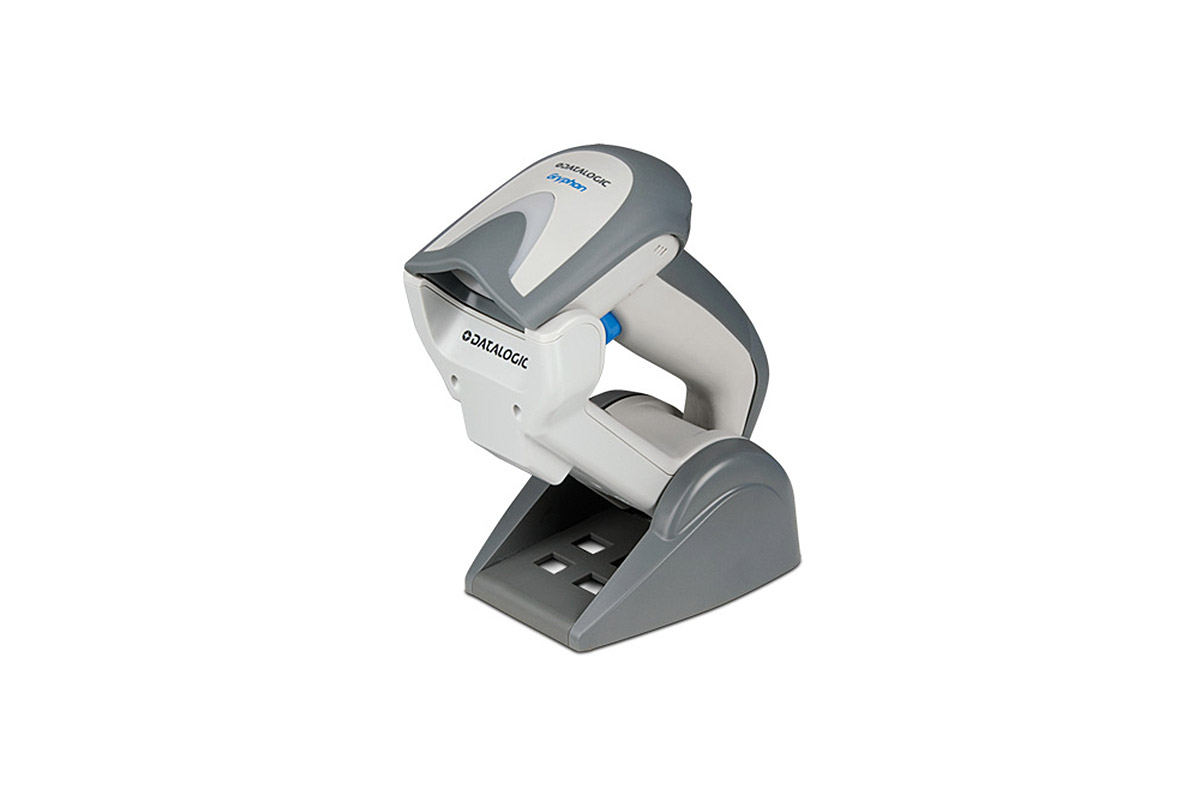

  • white
  • dark
Possible base / base option
base
Essential / unique features
  • fast reading of very wide codes

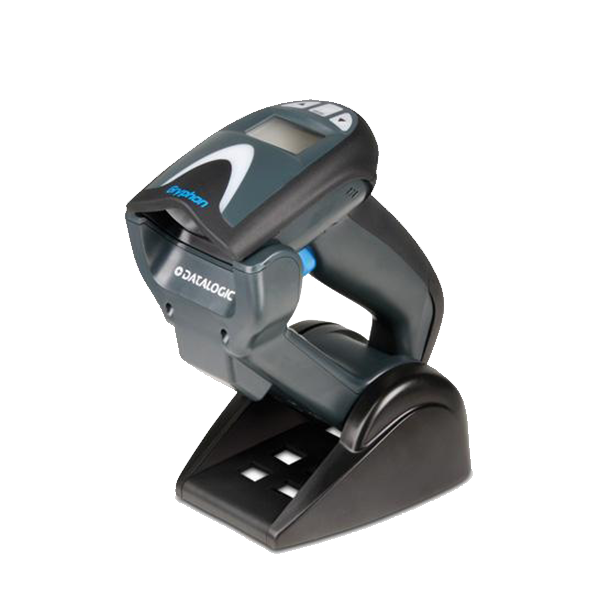

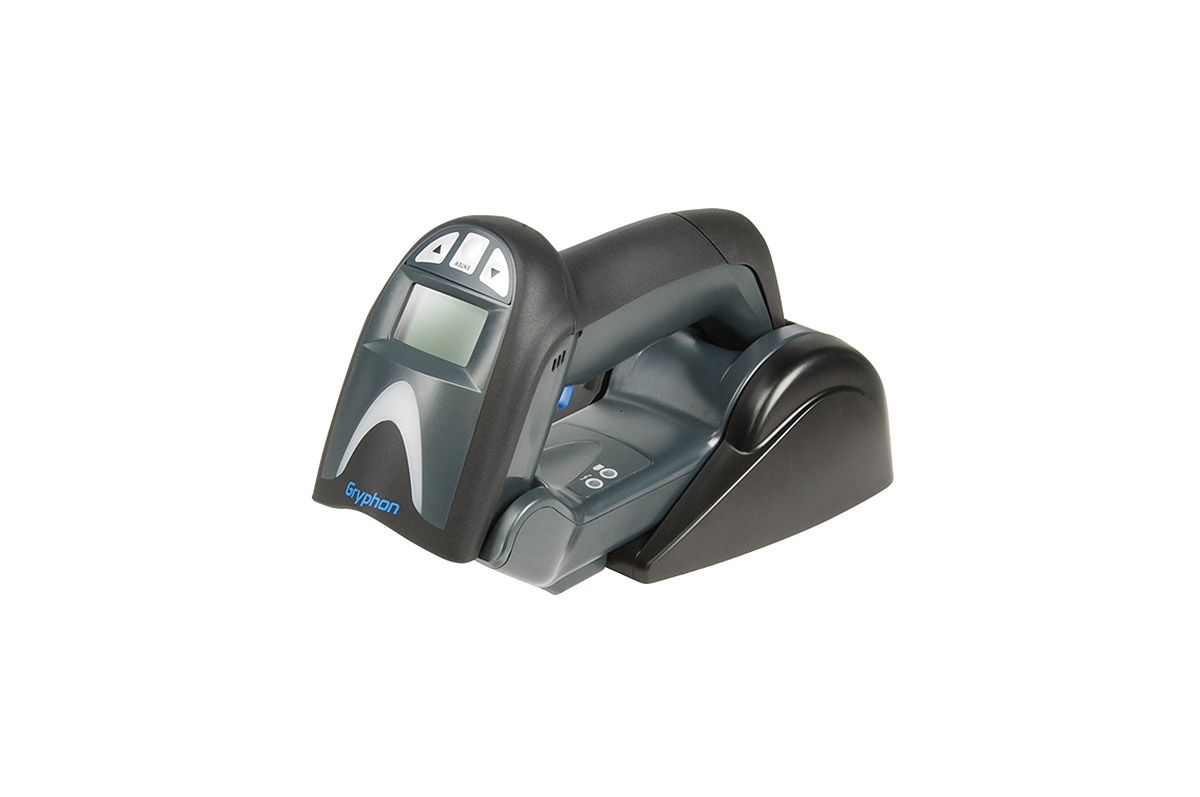

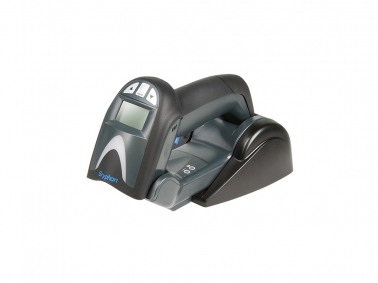

  • available version with a display (32x96 pixels) and a 3-key keyboard
  • possibility of connecting up to 16 scanners with one base
