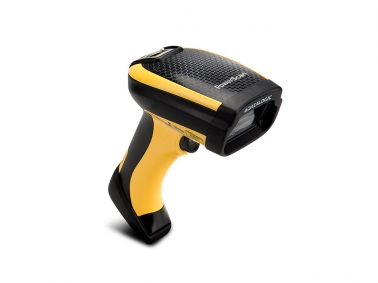

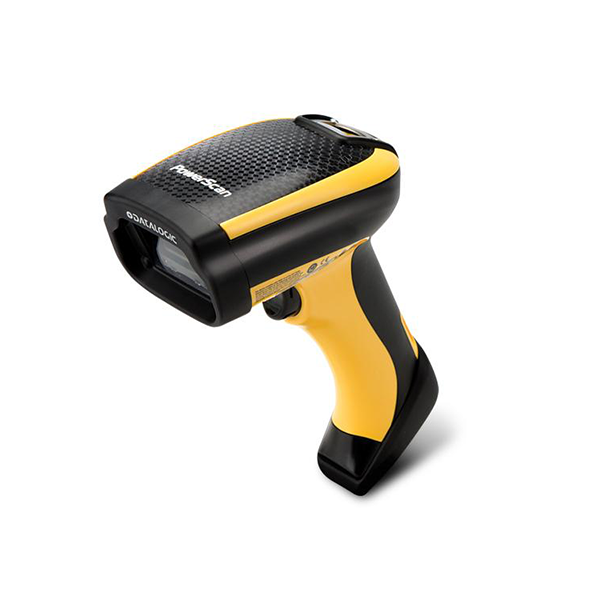

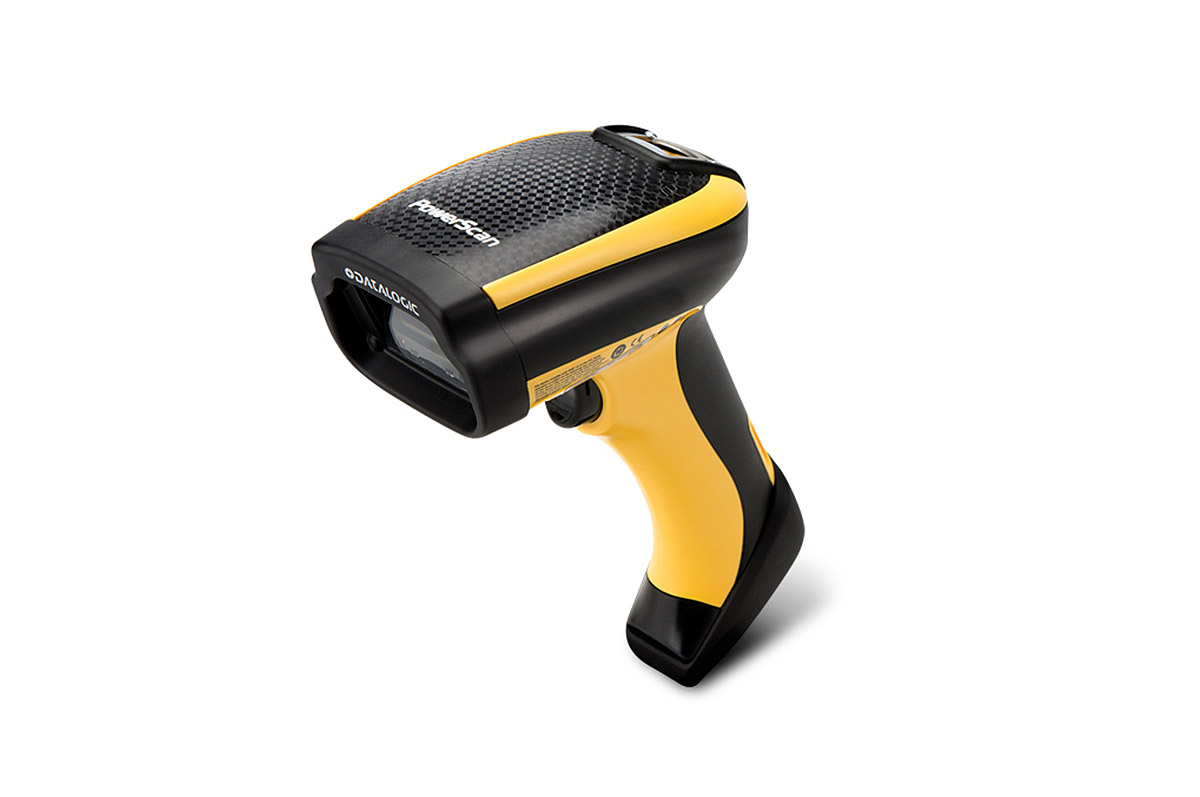

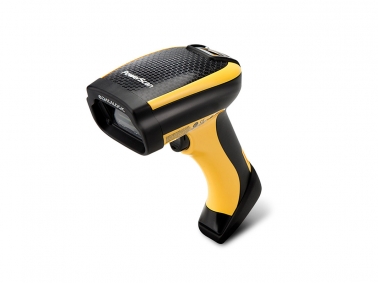

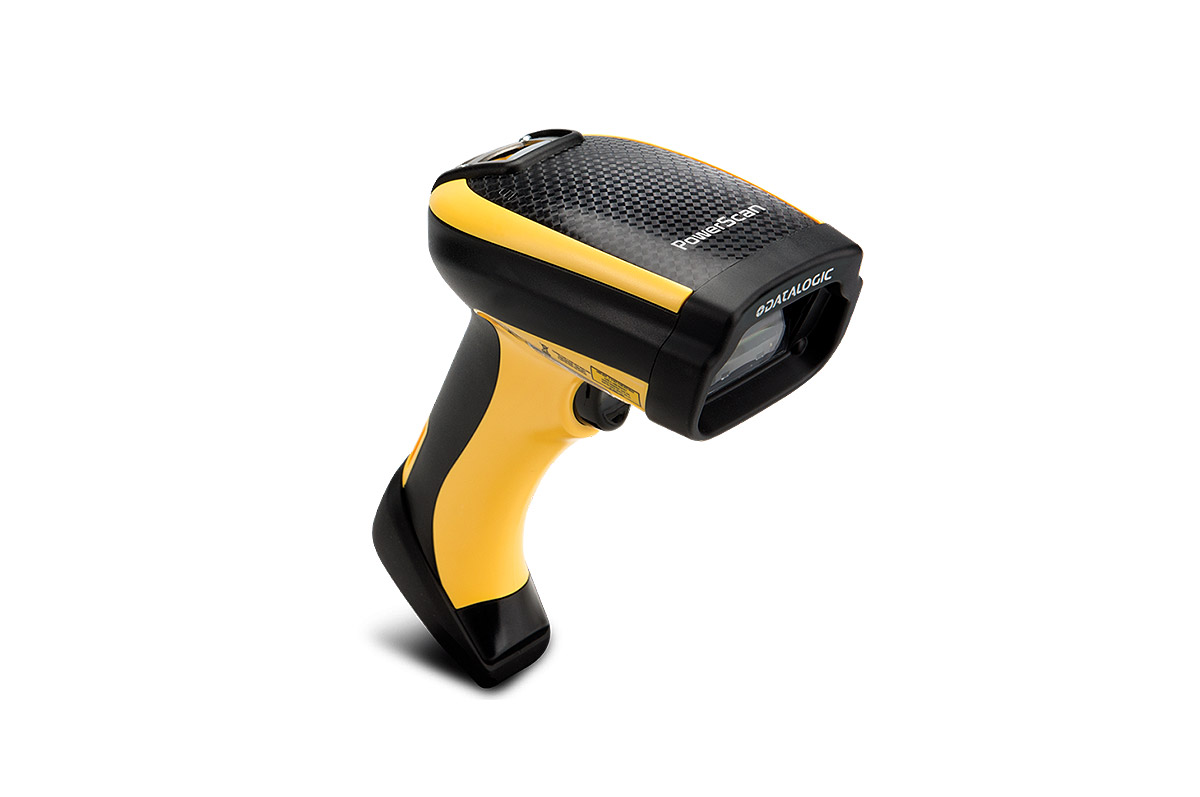

Datalogic PowerScan PD9500

A high-class device from the Datalogic family of industrial scanners, distinguished by high 1D and 2D code reading performance. The durability and comfort of the PowerScan PD9500 reader is ensured by a sealed housing (IP65) and a ergonomically-contoured pistol grip. Thanks to the strong structure, the scanner is resistant to severe weather conditions (working temperature: from -20℃ to +50℃), shocks and multiple falls on a concrete surface from a height of 2 m.

Colour option
Datalogic PowerScan PD9500

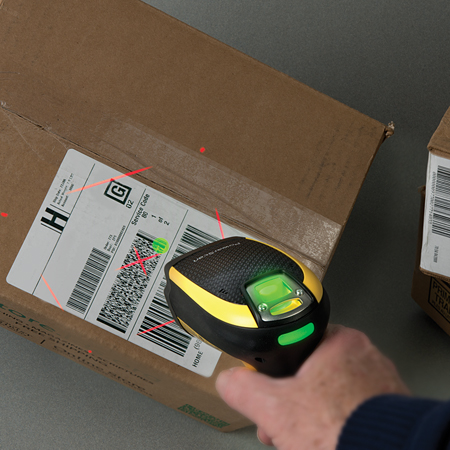

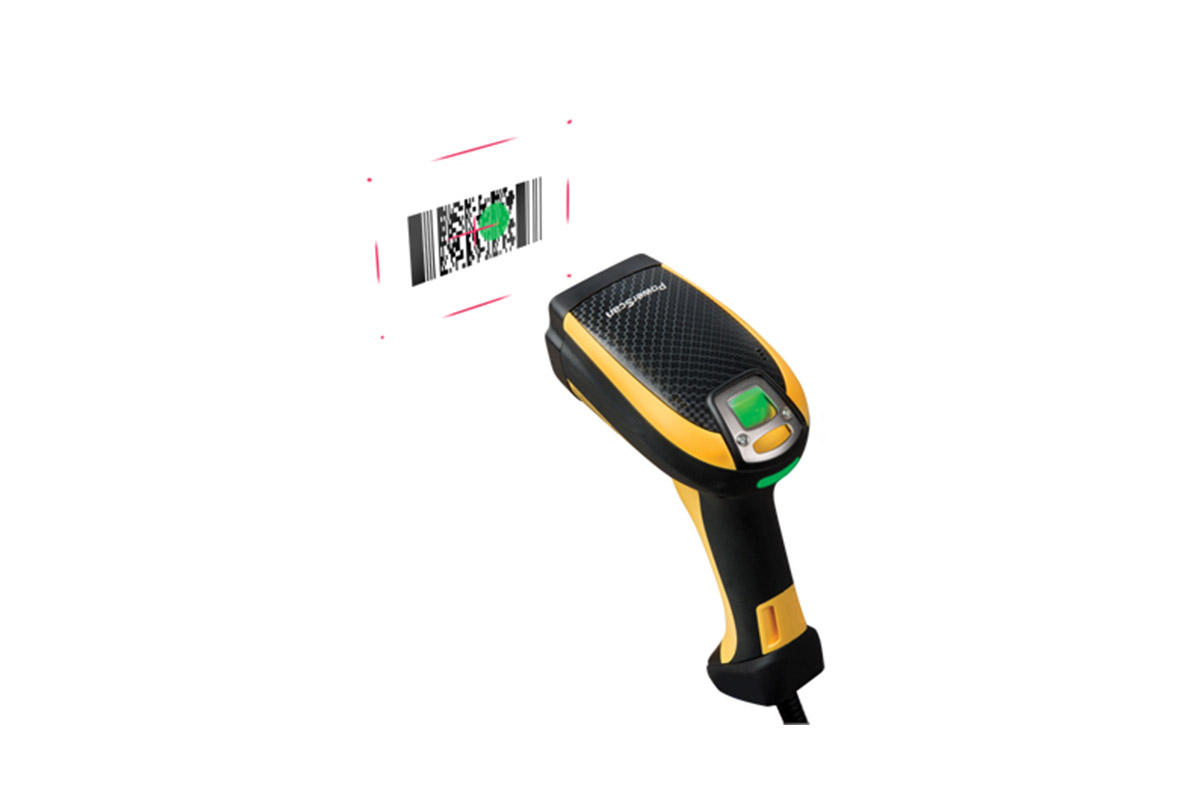

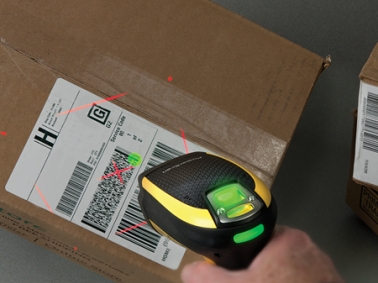

An important advantage of the PowerScan PD9500 is the way of activating the scanner to work and the way of signaling about the correct reading of the code. By using the Motionix technology, the device automatically switches between the manual and automatic operating mode of the reader, depending on the user's activity, and the Datalogic 3GL (Three Green Light) technology ensures - through a green dot on the code and LED signaling on the top and in the scanner handle - the user about correct code reading. These functionalities are ideal for rooms with high noise levels and where the speed of the scanner is a necessity.

PowerScan PD9500 is the perfect solution for warehouse and production line work.

The most important product features

  • reading every type of 1d and 2d code

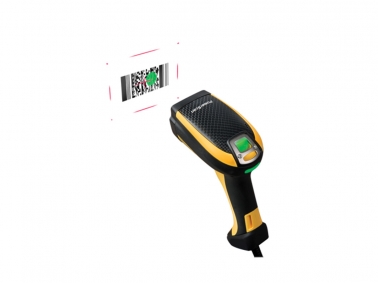

  • intuitive 4-point sight with a central button for scanning single codes
  • illumination of the reading field with white, warm light
  • Datalogic Motionix and Datalogic 3GL technologies
  • multi-interface: (possibility of interchangeable use of USB, KBW, RS 232 interfaces by changing the cable)

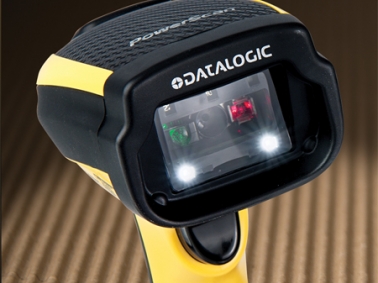

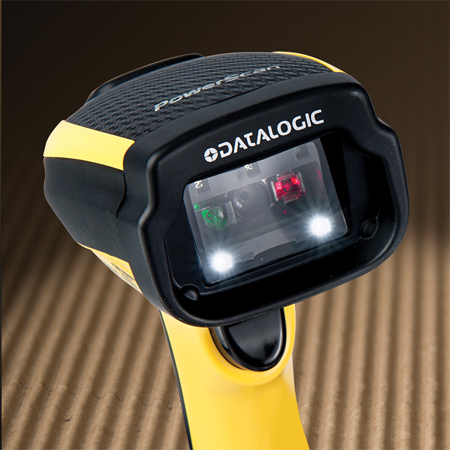

  • PD9500 series scanners have a replaceable reading window protective glass
Recommended devices
Honeywell Voyager 1200g
Honeywell Voyager 1200g
Honeywell Voyager 1250g
Honeywell Voyager 1250g
Honeywell Voyager 1450g
Honeywell Voyager 1450g
HF600 Youjie
HF600 Youjie
Producer
Datalogic
Reader type
  • wired
  • area imager
Scanning template / number of scanning lines or area
  • area: PD9530 - (864 x 544)
  • area: PD9530-HP/PD9530-HPE - (1280 x 1024)
Multi-direction code reader
yes
Minimum code's contrast
15%
Reading
Code read / other options
  • 1D
  • PDF417
  • 2D
  • taking picteres
  • codes from LCD monitors, mobile device displays, etc.
  • high-density codes / "very small format" codes (HD version)
  • vehicle registration certificate codes (Aztec)
Reading range for typical 13 mil UPC (0.33 mm) codes
  • 4 – 45 cm (PD9530)
  • 3 – 60 cm (PD9530-HP / PD9530-HPE)
Triggering readout
  • manual
  • automatic
  • Trigger Hold Multiple (reads per cycle) option
Signalling readout
  • sound
  • light (3GL)
Aimer, green spot, frame aimer
Green Spot, frame aimer
Use (motion increase)
high
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
  • production (+++)
  • logistics (warehouses, sorting plants, etc.) (+++)
  • industry (+++)
Physical features
Tightness class / industrial standard
IP65
Resistance / falls on concrete
50 x 2 m
Operational temperature (℃)
-20℃ to +50℃
Dimensions (mm)
212 x 110 x 74 mm
Weight (g)
330 g
Interfaces
USB, KBW/PS2, RS232
Multi-interface
yes
Options available
Colour options
black-yellow
Possible base / base option
yes
Essential / unique features
  • vivid-colored housing
  • Motionix technology
