Datalogic PowerScan PBT9500-DPM

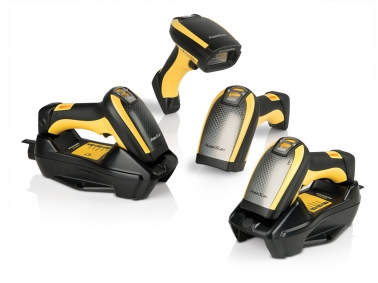

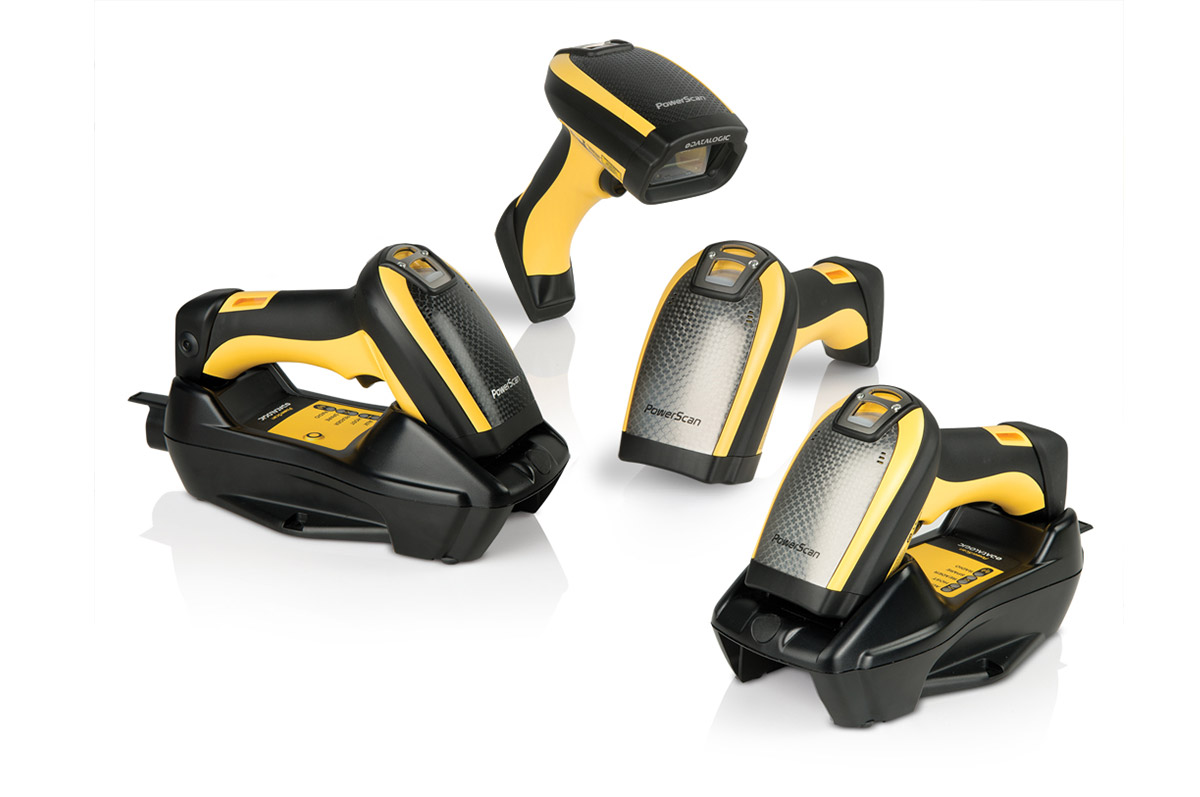

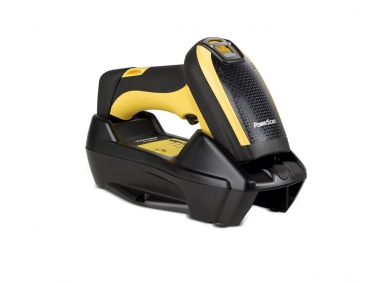

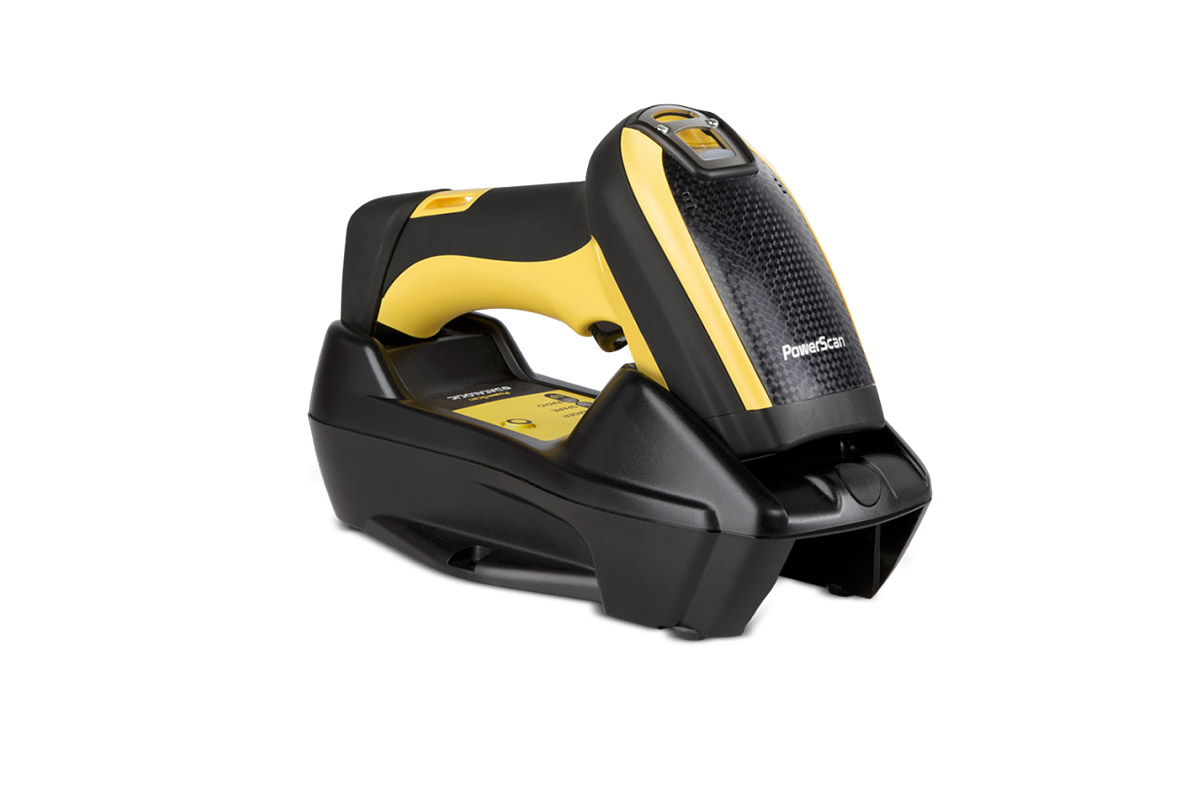

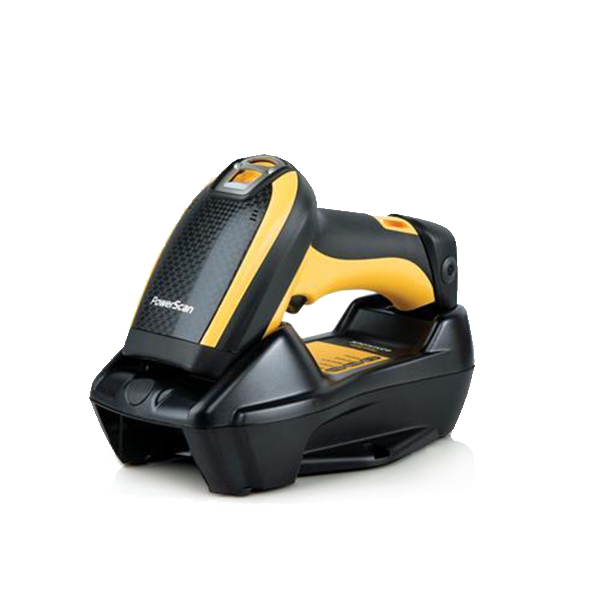

The Datalogic PowerScan PBT9500-DPM EVO is the wireless version of the PD9500-DPM EVO scanner. Handheld, industrial 1D and 2D area imager-type barcode scanner, distinguished by the reading of DPM (Direct Part Marking) codes.

Colour option
Datalogic PowerScan PBT9500-DPM

The durability and comfort of the PowerScan PD9500-DPM EVO reader is ensured by a sealed housing (IP65) and a ergonomically-contoured pistol grip. Thanks to the strong structure, the scanner is resistant to severe weather conditions (working temperature: from -20℃ to +50℃), shocks and multiple falls on a concrete surface from a height of 2 m.

An important advantage of the PowerScan PD9500 is the way of activating the scanner to work and the way of signaling about the correct reading of the code. By using the Motionix technology, the device automatically switches between the manual and automatic operating mode of the reader, depending on the user's activity, and the Datalogic 3GL (Three Green Light) technology ensures - through a green dot on the code and LED signaling on the top and in the scanner handle - the user about correct code reading. These functionalities are ideal for rooms with high noise levels and where the speed of the scanner is a necessity.

In addition, the scanner allows you to read codes from LCD screens and displays of mobile devices. It also has the ability to scan images ("take pictures") and save them as an image file.

The Bluetooth 3.0 (Class 1) technology used in the scanner ensures wireless communication within a range of up to 90 m from the base, increasing the freedom of work and eliminating the restrictions associated with the use of cables. Up to 7 scanners can work on the same base station.

PowerScan PBT9500-DPM EVO is the perfect solution for working in warehouses, production halls, on the production line (so-called production in progress) and for recording devices marked with DPM codes.

The most important product features

  • reading DPM codes (typical reading distance from close to 4-5 cm depending on the DPM technology used, resolution, material used and surface type)
  • omni-directional reading of 1D, PDF417, 2D codes
  • intuitive 4-point sight with a central button for scanning single codes
  • illumination of the reading field with white, warm light
  • Datalogic Motionix and Datalogic 3GL technologies
  • multi-interface: (possibility of interchangeable use of USB, KBW, RS 232 interfaces by changing the cable)
  • durable, sealed housing (IP65)
  • wide range of operating temperatures (-20° C to +50° C)
  • high resistance to shocks and falls (50-fold fall onto concrete from a height of 2m)
  • Bluetooth 3.0 (Class 1) wireless communication with an operating range of 90m
  • PM9500 series scanners have a replaceable reading window protective glass

Available options:

  • light black-yellow housing
  • interfaces: KBW/PS2, RS232, USB

Additional info:

  • configurable via Aladdin
  • available drivers: OPOS, USB-COM Driver, JavaPOS Driver
Producer
Datalogic
Reader type
  • cordless
  • area imager
Scanning template / number of scanning lines or area
  • area: PBT9530 - (864 x 544)
  • area: PBT9530-HP/PD9530-HPE - (1280 x 1024)
Multi-direction code reader
yes
Minimum code's contrast
15%
Reading
Code read / other options
  • 1D
  • PDF417
  • 2D
  • taking picteres
  • codes from LCD monitors, mobile device displays, etc.
  • high-density codes / "very small format" codes (HD version)
  • vehicle registration certificate codes (Aztec)
Reading range for typical 13 mil UPC (0.33 mm) codes
  • 4 – 45 cm (PBT9530)
  • 3 – 60 cm (BT9530-HP / PBT9530-HPE)
Triggering readout
  • manual
  • automatic
  • Trigger Hold Multiple (reads per cycle) option
Signalling readout
  • sound
  • light (3GL)
Aimer, green spot, frame aimer
Green Spot, frame aimer
Use (motion increase)
high
Special use / recommended for (+ recommended, ++ specially recommended, +++ specialist devices)
  • production (+++)
  • logistics (warehouses, sorting plants, etc.) (+++)
  • industry (+++)
Physical features
Tightness class / industrial standard
IP65
Resistance / falls on concrete
  • 50 x 2m (scanner)
  • 50 x 1,2m (base)
Operational temperature (℃)
-20℃ to +50℃
Dimensions (mm)
  • 212 x 110 x 74 mm (scanner)

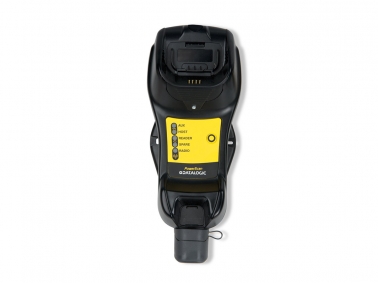

  • 240 x 108 x 95 mm (base)
Weight (g)
380 g (scanner)
Interfaces
USB, KBW/PS2, RS232, Ethernet
Multi-interface
yes
Wireless connection
Wireless range
BT 3.0 Class 1 (90m)
Battery operation at full charge
10 h
Number of scans at full charge
30 000
Memory - number of data stored
yes
Automatic Batch Mode option
yes
Inventory Batch Mode option
yes
Options available
Colour options
black-yellow

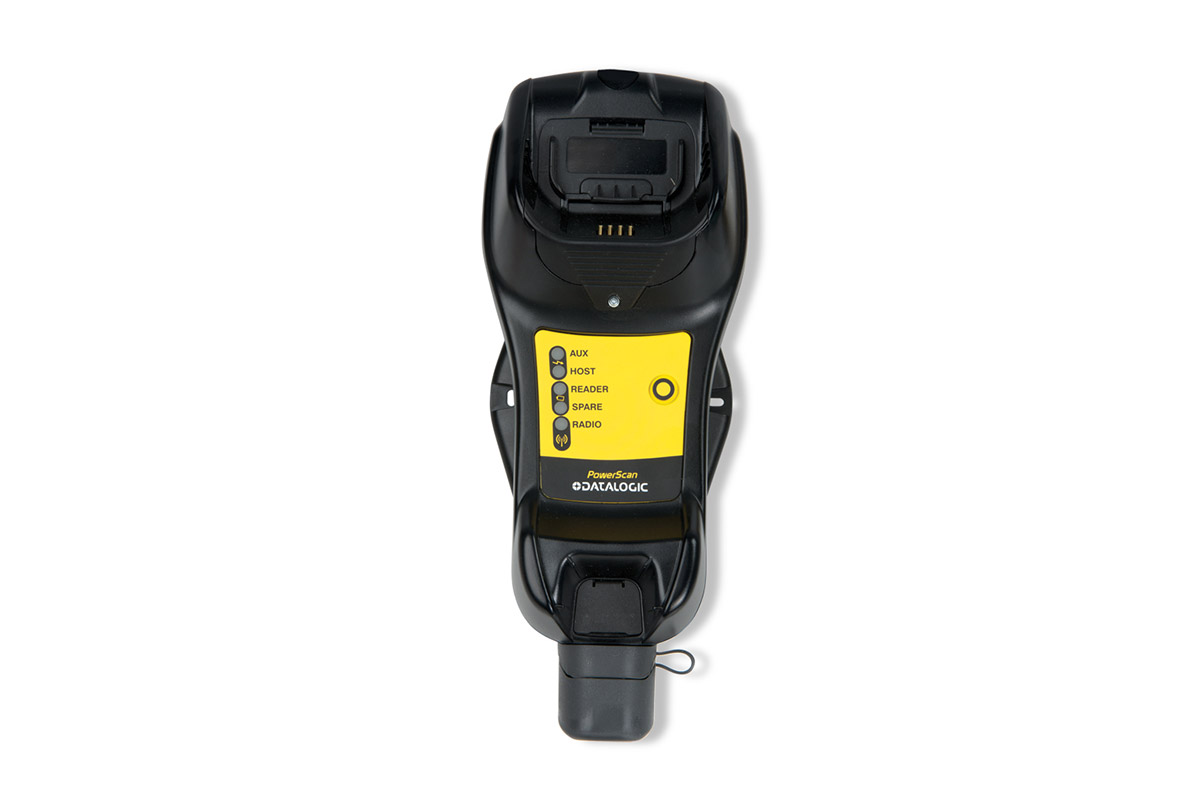

Possible base / base option
base
Essential / unique features
  • possibility of connecting up to 7 scanners to one base
  • possibility to connect via BT directly to compatible devices
  • possibility of connection via Ethernet
  • vivid-colored housing
  • Motionix technology
